Aeotec Z-Wave Plus v2 Door / Window Sensor 7 Pro, Gen7 (Open Box)

$33.13 $46.99
SKU: AEZWA012_OB

4 available at this price.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

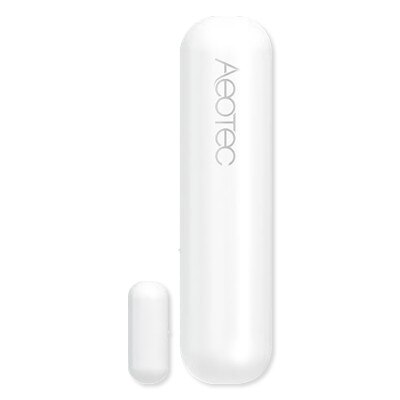

The Aeotec Z-Wave Door/Window Sensor 7 Pro is a battery-powered open/close contact sensor that monitors the open/close objects including doors, windows, drawers, and gates. This sensor connects to up to 7 Z-Wave devices to inform them of status changes and trigger automation or security events. It also supports connecting external binary sensors with a dry contact through the dry binary contact of the Door/ Window sensor. Using the latest technology it supports the highest Z-Wave security level of S2 and SmartStart.

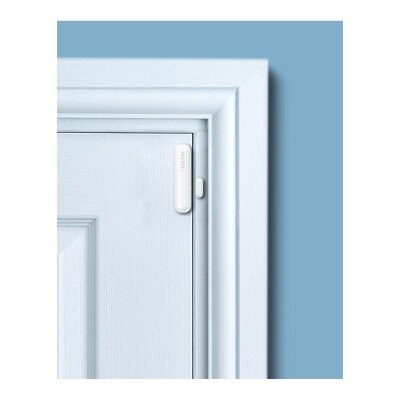

The Door/Window Sensor 7 Pro mounts onto open/close objects and frames to monitor traffic and activity in your home. When the window's status changes the sensor alerts connected receivers to trigger home security or home automation scenes. Program the sensor to activate lighting control, access control, or security measures upon status changes.

Features:

  • 3-in-1 Sensor: Open/Close contact, tilt, and tamper sensors within 1 device
  • Reports Open/Close status of monitored objects
  • Capable of activating automation or security scenes and sending mobile alerts upon being triggered
  • Can be converted to any type of sensor utilizing NO (Normally Open) dry contact sensors and external connections
  • Ultra-small profile at only 3 inches long
  • Receives over-the-air firmware updates
  • Spatial Intrusion Algorithm provides enhanced predictive security and automation

In The Box:

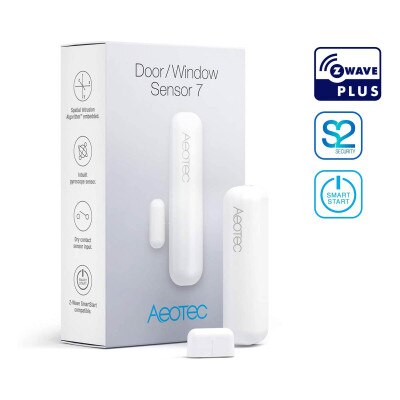

  • Z-Wave Door/Window Sensor 7 Pro
  • Cover
  • Big Magnet
  • Small Magnet
  • 2 x Double-Sided Tape Large
  • 2 x Double-Sided Tape Small
  • 4 x Screws
  • 4 x Dowels

NOTE: Requires a Z-Wave network controller, sold separately. For indoor use only. Should not be mounted on a metal frame.

Tech Specs

  • Part Number: ZWA012
  • UPC: 810667025311
  • Protocol: Z-Wave Plus
  • Frequency: 908.4 MHz (U.S)
  • Color: White
  • Material: ABS plastic
  • Operating Distance: Up to 164 feet/50 meters outdoors
  • S2 Security: Yes
  • Smart Start: Yes
  • Repeater: No
  • Beaming: No
  • Power Supply: No
  • Battery Charger Input: No

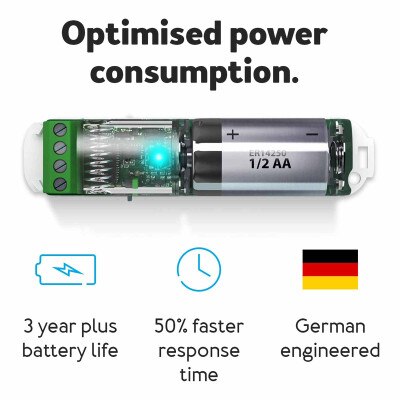

  • Battery Type: 1 * 1/2 AA ER14250 3.6V rated
  • Battery Life: 3 years assuming 5 open and 5 close events per day with Wakeup reports disabled
  • Tilt Detection: must be over 5 degrees
  • Operating distance: Up to 50 meters outdoors, Up to 164 feet outdoors
  • Operating humidity: 10 to 95%
  • Operating temperature: -20°C to 45°C (-4°F to 113°F)
  • Storage temperature: -30°C to 70°C (-20°F to 158°F)
  • Water proofing: IP20 rating
  • Dimension of Sensor: 0.75 in H x 2.8 in W x 0.7 inches D (19mm x 71mm x 18mm)
  • Dimension of Magnet: 0.13 in H x 0.78 in W x 0.43 inches D (8mm x 20mm x 11mm)
  • Warranty: 1-Year Limited
