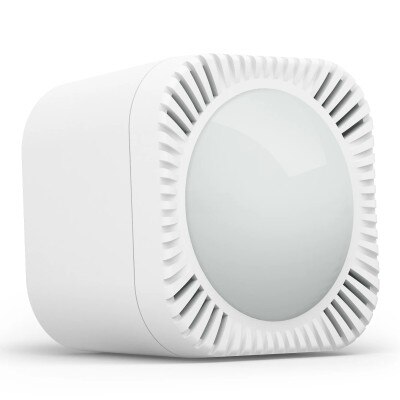

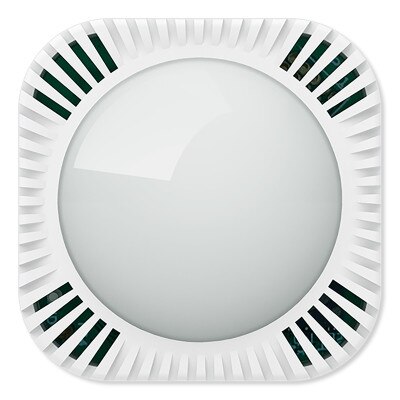

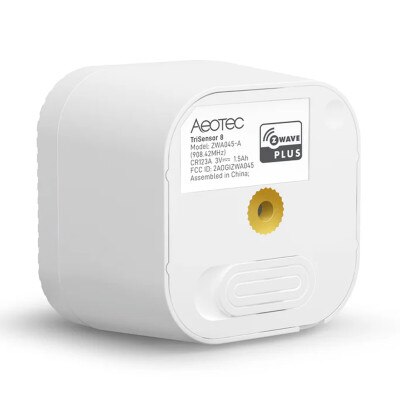

Aeotec Z-Wave Plus TriSensor 8 Multi-Sensor, 800 Series


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm –

Product Description

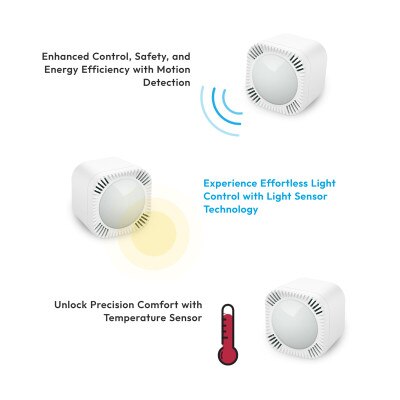

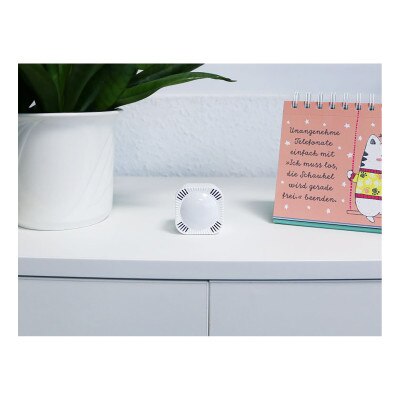

The Aeotec Z-Wave Plus TriSensor 8 Multi-Sensor, 800 Series integrates motion detection, temperature monitoring, and light sensing into a single, compact unit, making it an essential addition to any smart home setup. With the advanced Z-Wave Plus 800 Series technology, the TriSensor ensures extended range, faster communication, and improved battery life. Its sleek design allows for seamless integration into any room, providing versatile monitoring without compromising aesthetics. Compatible with a wide range of Z-Wave hubs and devices, the TriSensor is perfect for boosting your home's security, energy efficiency, and overall convenience.

  • Detects motion up to 33 feet away
  • Monitors ambient light levels from 0 to 30000 lux
  • Measures temperatures from 14°F to 122°F (-10°C to 50°C) and reports rapid changes in temperature
  • Utilizes Z-Wave Plus 800 Series technology for enhanced performance
  • Z-Wave LR certification enables mesh transmissions up to 656 feet (200m) line of sight, and point to point transmissions up to 1 mile (1.6km) line of sight
  • Compatible with a wide range of Z-Wave hubs and controllers

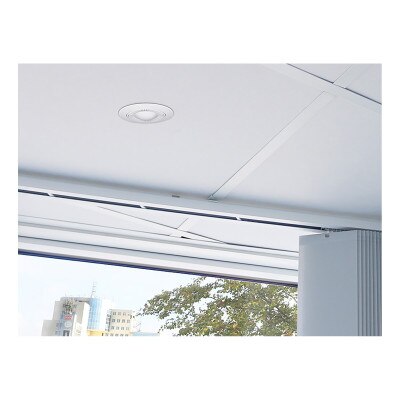

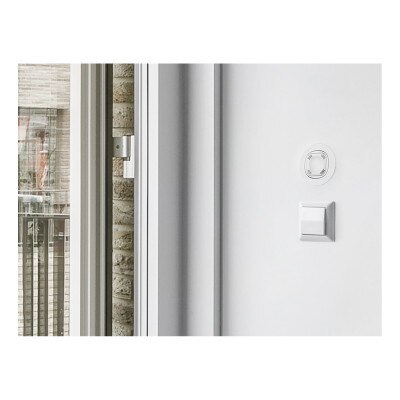

  • Easy installation with adhesive tape or mounting screws
  • Battery-powered with a long-lasting lithium cell

Why You Would Use This Product:

The Aeotec Z-Wave Plus TriSensor 8 Multi-Sensor is ideal for anyone looking to enhance their smart home automation. Use it to detect motion and automatically turn on lights when you enter a room, making your home more convenient and energy-efficient. Monitor the temperature in different areas of your house to maintain a comfortable environment and optimize your heating and cooling systems. The light sensor can adjust your smart lighting based on natural light levels, reducing energy consumption and creating the perfect ambiance. With its advanced security features, you can also receive alerts when unexpected motion is detected, providing peace of mind whether you're at home or away.

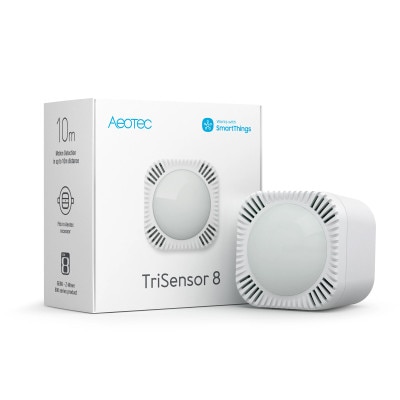

In The Box:

  • TriSensor
  • Battery Cover
  • Double-Sided Tape
  • 2 x Screws
  • Back Arm Mount
  • Warranty Card
  • Quick Start Guide

NOTE: A Z-Wave compatible hub or gateway is required for operation, sold separately.

Tech Specs

  • Part Number: ZWA045
  • UPC: 810667020064
  • Z-Wave Plus Certified: Yes
  • Series 800: Yes
  • S2 Security: Yes
  • FLiRs Supported: Yes
  • Long Range: Yes
  • Power Supply:

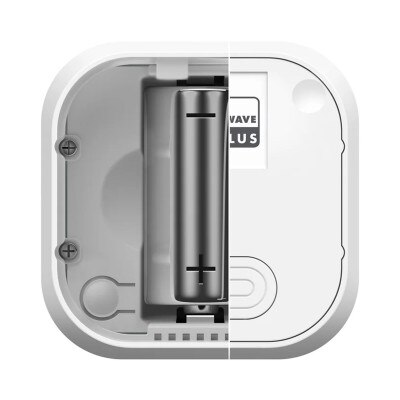

    • Battery Power (1xCR123A batteries, 3V, 1500mAh)
    • Not compatible to rechargeable CR123A batteries (3.7V)
  • Sleep Current: 2uA
  • Shutoff Mode: 1uA
  • Active Mode: 26 uA/MHz
  • Inclusion/Exclusion Current: 8 mA
  • Voltage input (Battery Power):
    • Min Voltage = 2.6VDC
    • Max voltage = 3.2VDC
  • Repeater: No
  • Sensor Technical Information (Measured Temperature Range):
    • -10°C to 50°C [±1°C]
    • 14°F to 122°F [±1.8°F]
  • Lighting: 0 LUX to 30000 LUX [±3%]
  • Operating Humidity: 8% to 80%.
  • Operating Temperature: 32°F to 158°F (0°C to 70°C)
  • Max. Motion Detection Range: 33 feet (10 meters)
  • Waterproofing: IP20 rating
  • Battery Life: ~1.5 years using 1x CR123A batteries
  • Operating Distance (Mesh Network):
    • Up to 656 feet outdoors
    • Up to 200 meters outdoors (Mesh network)
  • Long Range Network:
    • Up to 1 Mile
    • Up to 1.6km
