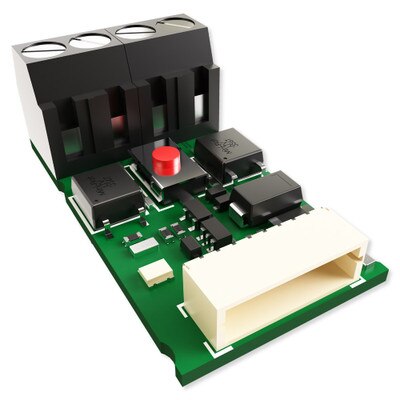

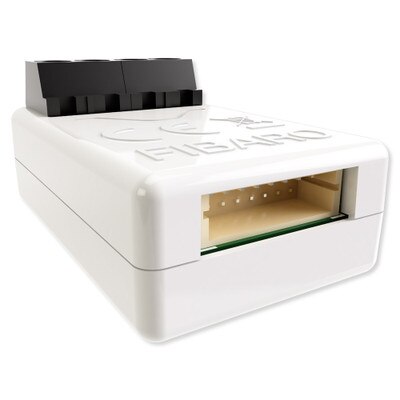

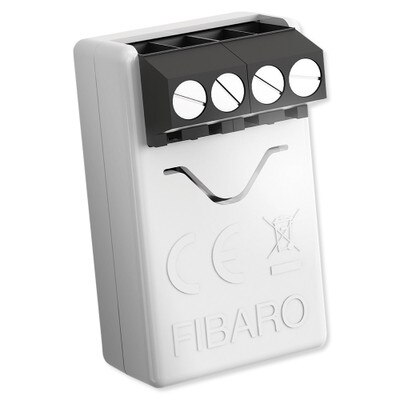

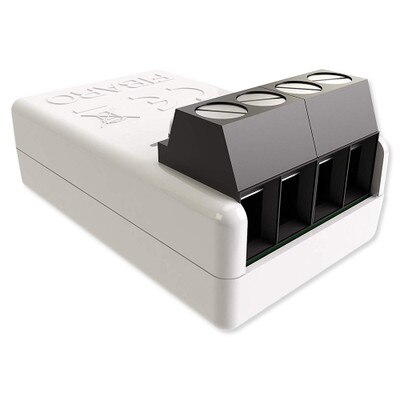

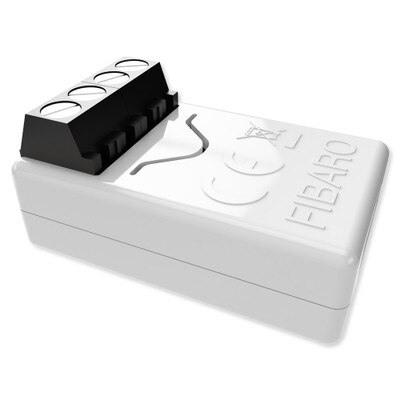

FIBARO Smart Implant

$40.06
SKU: FBFGBS222US

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The FIBARO Smart Implant enhances the functionality of wired sensors and other devices by adding them to your Z-Wave network.

Connect binary sensors, analog sensors, DS18B20 temperature sensors or DHT22 humidity and temperature sensor to report their readings to your Z-Wave controller. The Smart Implant supports any of the following number of sensors:

  • 6 x DS18B20 sensors
  • 1 x DHT sensor
  • 2 x 2-wire analog sensors
  • 2 x 3-wire analog sensors
  • 2 x binary sensors

This Z-Wave signal module is compatible with any certified Z-Wave or Z-Wave Plus controller. It can also control devices by opening/closing output contacts independently of the inputs and works as a Z-Wave signal repeater.

Features:

  • Connects various non- Z-Wave sensors to Z-Wave networks via wired connections
  • Works as a Z-Wave signal repeater
  • Built-in temperature sensor
  • Flashing LEDs indicate status and program modes

In The Box:

  • Smart Implant
  • Operating Manual

NOTE: For indoor use only. Do not place the Implant antenna near metallic components in order to avoid signal interference.

Tech Specs

  • Part Number: FGBS-222 US
  • Power supply: 9-30V DC ±10%
  • Inputs:
    • 2 0-10V or digital inputs
    • 1 serial 1-wire input
  • Outputs: 2 potential-free outputs
  • Supported digital sensors: 6 DS18B20 or 1 DHT22
  • Maximum current on outputs: 150mA
  • Maximum voltage on outputs: 30V DC / 20V AC ±5%
  • Built-in temperature sensor measurement range: -55 C to 126 degrees C (-67 F to 259 degrees F)
  • Operating temperature: 0 to 40 degrees C (32 to 104 degrees F)

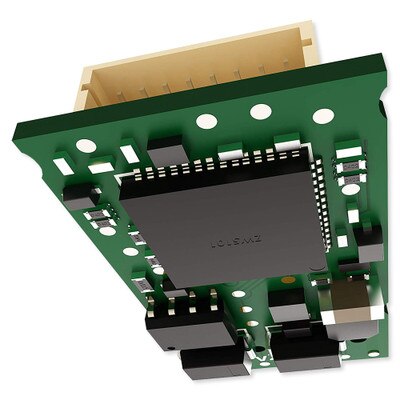

  • Radio protocol: Z-Wave (500 series chip)
  • Radio frequency: 8
    • 68.4 or 869.8 MHz EU;
    • 908.4, 908.42 or 916.0 MHz US;
    • 921.4 or 919.8 MHz ANZ;
    • 869.0 MHz RU
  • Radio transmit power: max. 7 dBm (EIRP)
  • Range: up to 40m (131 ft) indoors
  • Dimensions: 29 L x 18 W x 13 H mm (1.14 x 0.71 x 0.51 inches)
  • RoHS 2011/65/EU and RED 2014/53/EU compliant
  • Warranty: 1 Year
