IST AM/FM Antenna for I2000/RETRO Intercom, 35 Ft.

AM/FM Antenna mounts in attic for use with IntraSonic I2000M and IntraSonic RETRO Master Stations.

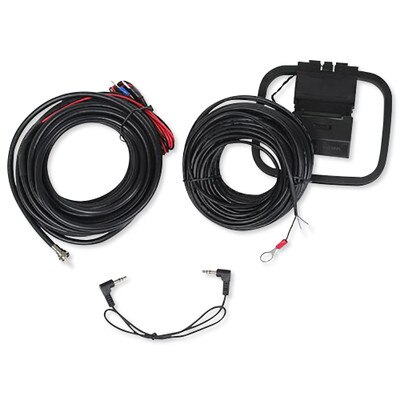

The FM antenna wire is the long black wire with a coaxial end that splits into a red and black wire. The coaxial end will stay where the master unit will be mounted with sufficient slack. The two red and black wires will run to the attic (or the highest point of the house) and split apart as far as possible and nail to the studs in the attic for best reception.

The AM antenna wire is the black wire that has an antenna mount attached to it. The round metal piece will hook up to the coaxial piece on the master before the FM antenna is connected and the 2 wires coming off of it will clip into the black clips on the back of the master right next to the coaxial end. The antenna mount will run up to the attic.

Important Information: To limit interference with the radio reception, keep the antenna wires away from other power wires and sources.
