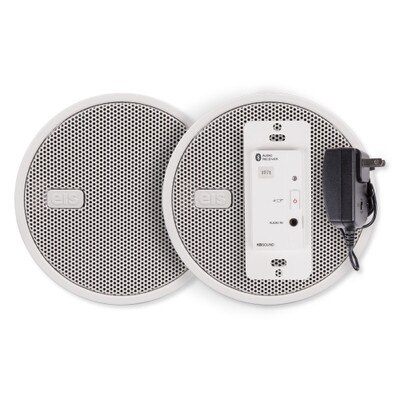

KBSound In-Wall Bluetooth Audio Receiver with Two 2.5 In. Speakers and Power Supply, White, US

$209.99
SKU: ES5280A

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The KBSound In-Wall Bluetooth Audio Receiver with Two 2-1/2" Speakers and Power Supply, White (U.S.) can be paired with any device with Bluetooth capabilities (A2DP / AVRCP). It fits into DECORA light switches and has a signal reach of 33 ft. Designed to ensure security and avoid interferences from other users nearby, each Bluetooth Audio Receiver module has its own identification number. This device is perfect for homes, hotel rooms, hospitals, schools, apartments and any public place or business that allows digital audio content from a Bluetooth-enabled device to be played out loud.

  • Pairs with Bluetooth devices (A2DP/AVRCP) and connects to the included external speakers with left and right outputs
  • Ideal for streaming music, online podcasts, or other audio content
  • Fits into Decora style light switches
  • External audio input (3.5mm Jack)
  • Line output can extend signal to a different area
  • Each module has a Bluetooth ID so it can co-exist in the same installation with other modules

In The Box:

  • Audio Receiver
  • (2) 2-1/2" Speakers
  • Power Supply
  • Manual

Notes: It's recommended that the rough in back box should be a one or two gang UN/CSA approved 18ci plastic junction box. Do not use metal back boxes which may interfere with the Bluetooth signal.

Tech Specs

  • Part Number: 5280A
  • UPC: 8436031618679
  • Outputs:
    • Stereo Line
    • Right Speaker
    • Left Speaker
    • Amplifier Trigger
  • Speaker Impedance: 4/8/16 ohms
  • Speaker Output: 5W stereo max.
  • Speaker Color: White
  • Other Connection: Volume limitation and mono/stereo jumpers
  • LED Display:
    • Off: Disconnected and Audio Off
    • Bluetooth: Blue Flashing – searching BT Device
    • Bluetooth: Blue On – BT connected
    • Audio-In: Red On – Audio-In Activated
  • Voltage Terminals VDC, GND:
    • Normal: 15Vdc
    • Max: 16Vdc
  • Consumption Demand Bluetooth Operation:
    • Minimum: 22mA
    • Normal: 111mA
  • Consumption Demand Jack 3.5mm:
    • Minimum: 22mA
    • Normal: 99mA
  • Input Signal Jack 3.5mm:
    • Normal: 100mVrms
    • Maximum: 550mVrms
  • Input Signal Jack 3.5mm Input Impedance:
    • Minimum: 7Kohms
    • Maximum: 60Kohms
  • Output Signal Output 4 ohm:
    • Maximum: 5Wrms
  • Output Signal Output 8 ohm:
    • Maximum: 2.5Wrms
  • Output Signal Output 16 ohm:
    • Maximum: 1.5Wrms
  • Line Output Signal Terminals 65, 66, 4:
    • Maximum: 1.82Vrms
  • Line Output Signal Terminals 65, 66, 4 Output Impedance:
    • Maximum: 50ohm
  • Amplifier Trigger Signal Terminals 62, 4:
    • Maximum: 14Vdc
  • Amplifier Trigger Signal Terminals 62, 4 Output Impedance:
    • Maximum: 1Kohms
  • Left/Right Channel Separation:
    • Normal: 58dB
  • Passband:
    • Minimum: 45Hz
    • Maximum: 20,000Hz
  • Distortion:
    • Normal: 0.1%
  • SNR:
    • Normal: 84dB
  • Bluetooth Identification Number:
    • Minimum: 0000
    • Maximum: 9999
  • Bluetooth:
    • Class2 BT2.1 + EDR
    • A2DP 1.2
    • AVRCP 1.4
  • Wireless Transceiver: 2.4GHz
  • RF Power Transmitter: 7 dBm
  • Dimensions:
    • Exterior: 1.77 x 4.17 x 1.77 inches (45 x 106 x 45mm)
    • Cavity: 1.77 x 1.77 x .41 inches (45 x 45 x 36mm)
    • Face Cover: 1.30 x 2.60 inches (33 x 66mm)
  • Range: 33 feet (10m)
  • Warranty: 2-Year
