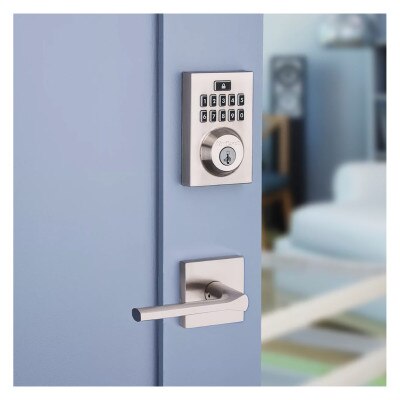

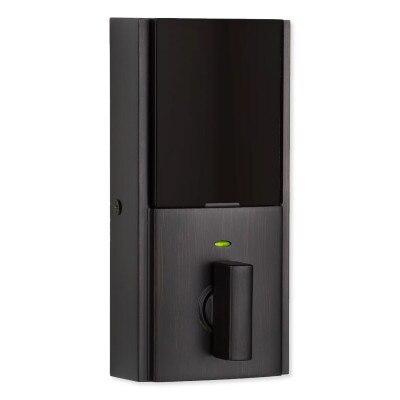

Kwikset SmartCode 914 Zigbee Contemporary Deadbolt with Home Connect

$166.87
SKU: KW991401x

Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Kwikset SmartCode 914 Zigbee Contemporary Deadbolt with Home Connect adds Zigbee connections and pass codes to your door lock. The SmartCode 914 Series Deadbolt works with your Zigbee automation and security systems. The metal housing delivers quality that can be felt for added security and durability.

  • For use on exterior doors where keyed entry and security is needed
  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
  • Comes with 2 keys

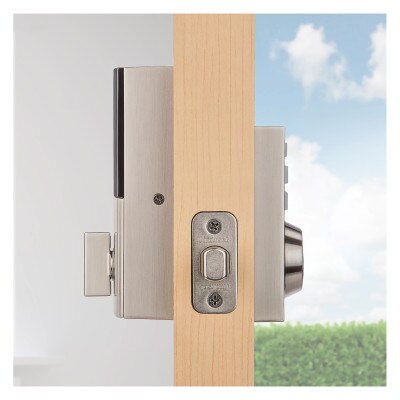

  • Deadbolt Latch is 20 minute fire rated with round corner face
  • ANSI/BHMA grade 2 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Includes round deadbolt strike 1 in. deadbolt throw
  • 1 inch deadbolt throw Locking mechanism functions with turn piece on the interior of the lock
  • Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
  • Requires 4 AA batteries, included
  • Keypad stays lit for 30 seconds after inactivity
  • Featuring Home Connect™ technology, your electronic lock can now interface with security and home automation systems using a ZigBee radio that connects to an in-home hub, such as a wireless router

In The Box:

  • Zigbee Deadbolt Lock
  • Latch and Strike
  • 2 x Standard Cut Keys
  • Installation Hardware

Tech Specs

  • Part Number:

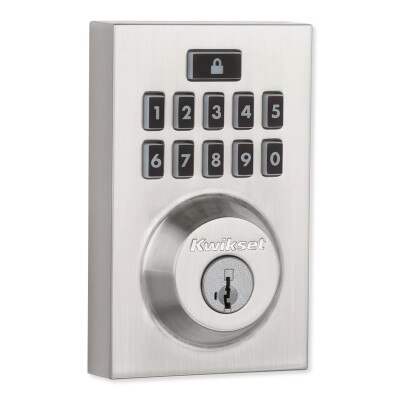

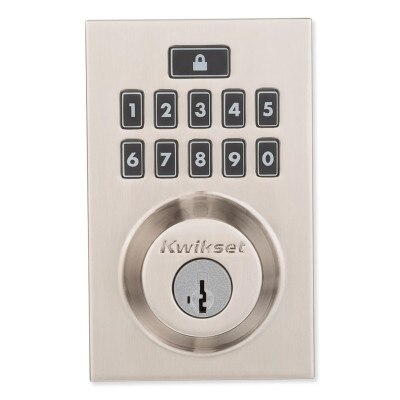

    • 99140-134: Satin Nickel

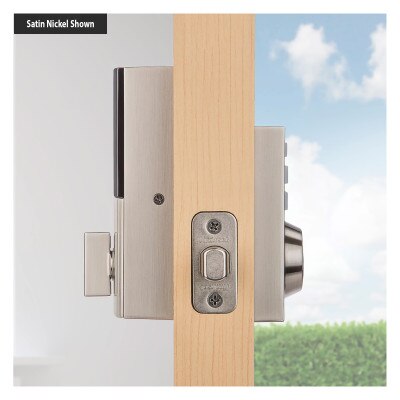

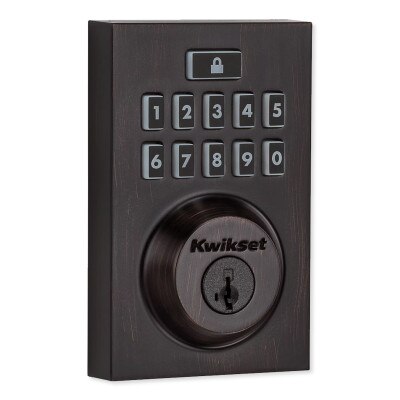

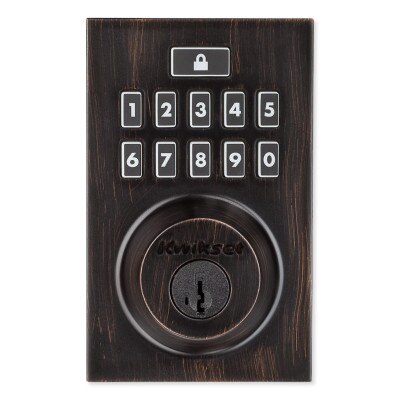

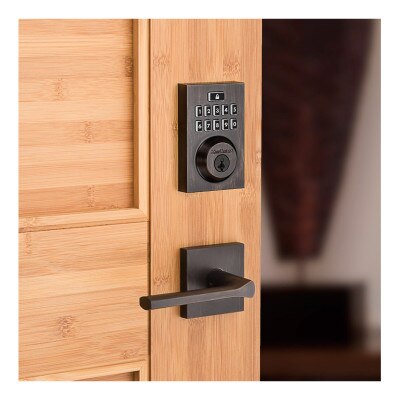

    • 99140-135: Venetian Bronze

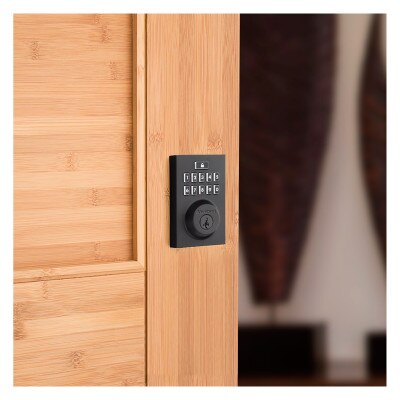

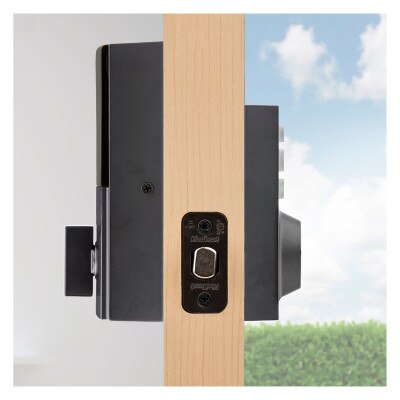

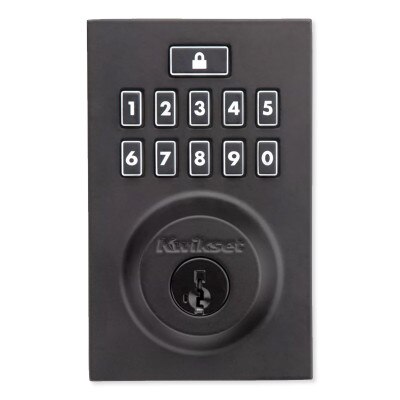

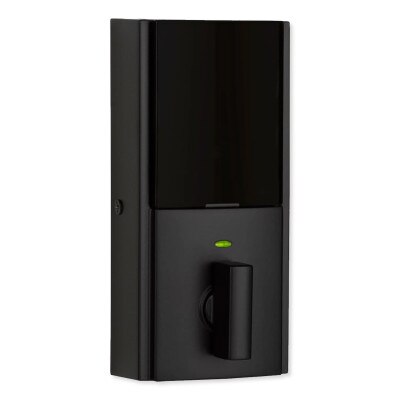

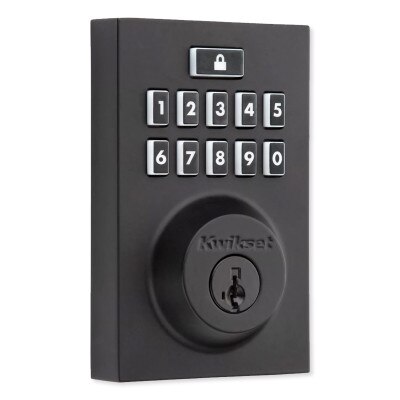

    • 99140-136: Matte Black

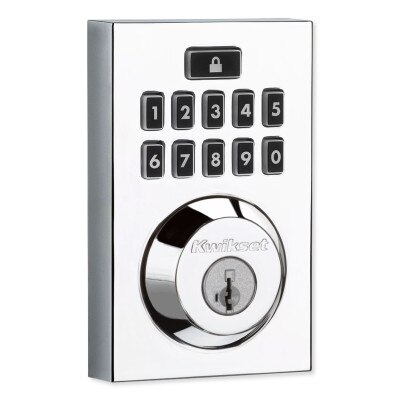

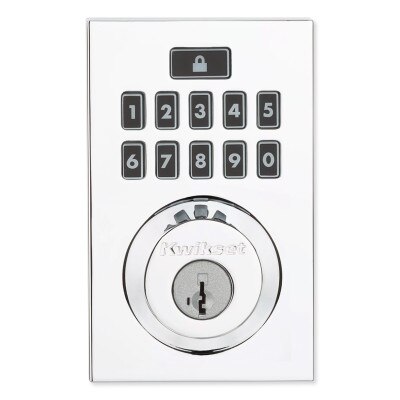

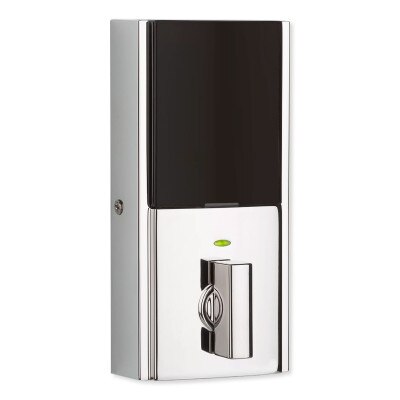

    • 99140-137: Polished Chrome
  • Function: Single cylinder deadbolt
  • Door Prep: 2-1/8 inches diameter face hole and 1-inch diameter latch hole
  • Backset: Adjustable 2-3/8 inches or 2-3/4 inches
  • Door Thickness: 1-3/8 to 1-3/4" inches automatic adjustment
  • Cylinder: SmartKey Re-Key Technology
  • Faceplates: 1 x 2-1/4 inches round corner standard
  • Strikes: Round corner strike 2-3/4 x 2-1/8 inches
  • Bolt: 1" throw, steel deadbolt
  • Door Handing: Reversible
  • Power Supply: Requires 4 AA alkaline batteries (not included).
  • Battery Life: Approx. 1 year
  • Wireless Protocol: Zigbee HA Version 1.2 (backwards compatible with V1.0 devices)
  • Frequency: 2.4 GHz
  • Range: Up to 35 feet (10m) indoors and 250 feet (76m) outdoors*
  • Approvals: FCC
  • Warranty: Lifetime mechanical and finish warranty; 1 year electronics warranty
