Leviton 50A Heavy Duty Flush Mount Receptacle/Outlet for EV Charging Stations, Weather-Resistant

$61.65
SKU: LV1450W

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Leviton 50A Heavy Duty Flush Mount Receptacle/Outlet for EV Charging Stations, Weather-Resistant provides a space saving and reliable solution for charging electrical vehicles at home. This heavy duty electrical outlet is designed to handle the high power draw of EV charging without requiring the custom installation expected with home EV charging stations. This receptacle offers the perfect option for homeowners who prefer96* using a standard style outlet and simpler installation as opposed to a hardwired application. This Receptacle is also attractive towards future-focused new construction MDU projects that want to present an EV-ready environment for new builds.

  • Designed specifically for plug-in EV charging applications
  • Replaces an outdoor plug and performs in most outdoor environments
  • Sustains the necessary extended usage time and high energy draw of EV chargers
  • Perfect option for homeowners who prefer a low profile plug-in EV charging unit

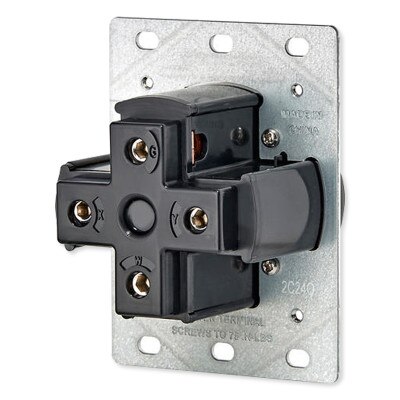

  • Pressure-wire terminal connections ensures full-contact with the conductors; terminals require 75 in lbs
  • Clearly marked terminal IDs and easy to follow instructions

Why You Would Use This Product:

The Leviton 50A Heavy Duty Flush Mount Receptacle offers a simple and low profile option for EV charging that saves time and money on installation without sacrificing utility. The Receptacle is compatible with both residential and commercial installations.

In The Box:

  • Outlet
  • Weatherproof Cover
  • Mounting Screws

NOTE: Must be wired into a 2-gang electrical box and must be installed with code compliant weatherproof cover.

Tech Specs

  • Part Number: 1450W
  • UPC: 078477013359
  • Device: Flush Mounted Single Receptacle
  • Grade: Industrial
  • Features: Weather Resistance
  • Type: 3-Pole 4-Wire
  • Amperage: 50A
  • Voltage: 125/250 VAC
  • AC Horsepower Ratings: 3 HP
  • Temperature Rating: -40° to 140°F (-40° to 60°C)
  • Wire Gauges: #4, #6, #8. #10 for ground only
  • Torque: 75 in-lbs.
  • Face Material: Nylon
  • Strap Material: Heavy Gauge Galvanized Steel
  • Flammability: Rated HB or better UL94
  • Ratings and Certifications: cULus
  • Dimensions: 2.75 W x 3.75 H x 2.327 D inches
  • Warranty: 2-Year Limited
