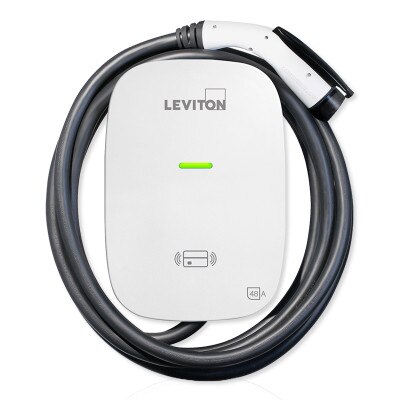

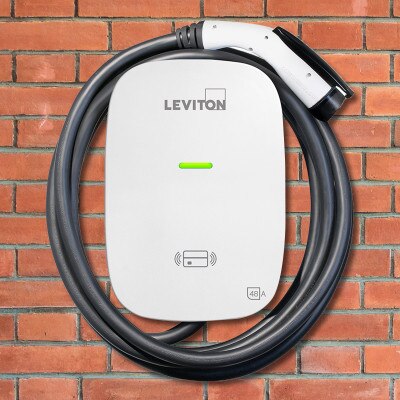

Leviton Evr-Green 48A Level 2 Electric Vehicle Charging Station, 18 Ft. Charging Cable

$792.33
SKU: LVEV480

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

This is a heavy and/or oversized item and does not qualify for our shipping promotion.

Product Description

The Leviton Evr-Green 48A Level 2 Electric Vehicle Charging Station, 18' Cable enables fast charging of any SAE 1772™ compatible electric vehicle. This new EV charger delivers up to 11.6kW of power, and RFID card reader for fast activation, and offers a more compact, affordable, easy to use and easy to install solution to electric vehicle charging.

Features:

  • "Auto-Reclosure" feature enables charging to restart following a minor fault, thereby reducing the chance of having an undercharged battery
  • New cable design prevents cord from freezing and cracking in extreme weather
  • Status indicator lights indicate power, charging status, and faults
  • Integrated On/Off switch to minimize standby power
  • Additional safety features include over current, over voltage, under voltage and short circuit protection
  • Compact size, and unique wiring compartment design provides a hassle-free installation
  • Water-Resistant enclosure is rated NEMA Type 3R for indoor and outdoor use
  • Thermoplastic vandal-proof enclosure withstands the harshest environments

In The Box:

  • Evr-Green Charging Station
  • 18 ft Charging Cable
  • Wall Mounting Bracket
  • 2 x M5 teeth screws
  • 4 x M6 Hexagonal Expansion Screws
  • 2 x RFID Cards
  • Administrator RFID Card

NOTE: This EV home charging station does not include a recommended hook for hanging the charge connected cord when not in use.

Tech Specs

  • Part Number: EV320
  • UPC: 007847787757
  • Warranty: 2-Year Limited

Electrical

  • Amperage: 48A
  • Breaker: 60A
  • Voltage: 208/240 VAC
  • Output Power: 11.6kW
  • Short Circuit Current Rating: 20 mA CCID per UL 2231
  • Charging Connector: #7 AWG SAE J1772
  • Number of Phase / Wire: L1, L2 and Ground, Bottom Feed

Environmental

  • Operating Humidity: 0 to 95 % Relative, Non-Condensing
  • Operating Temperature: -22°F to 122°F (-30°C to 50°C)
  • Operating Altitude: Up to 6,500 ft. (2,000 m)
  • Cooling: Natural Cooling

Material

  • Locking Mechanism: Phillips Head Screws, No Padlock Option
  • Enclosure Material: Plastic (PC+PBT)
  • Enclosure Rating: NEMA Type 3R
  • Status Indicator: Power Present, Charging, Fault
  • Cable Length: 18 Ft. (5.5 m)
  • Dimensions: 13.8 x 9.8 x 5.1 inches (350.5 x 228.6 x 129.5 mm), excluding charging cable, mounting plate and cable holder
  • Standards & Certifications UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, RoHS
