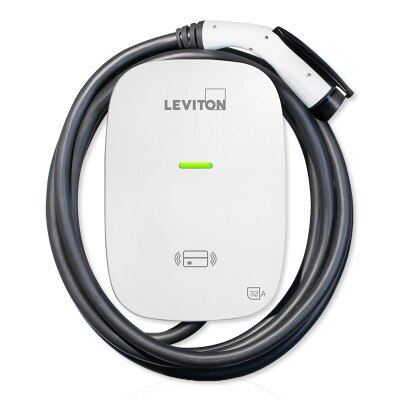

Leviton Evr-Green 32A Level 2 Electric Vehicle Charging Station, 18' Cable
Product Description
The Leviton Evr-Green 32A Level 2 Electric Vehicle Charging Station, 18' Cable enables fast charging of any SAE 1772™ compatible electric vehicle. This new EV charger delivers up to 7.6kW of power, and RFID card reader for fast activation, and offers a more compact, affordable, easy to use and easy to install solution to electric vehicle charging.
Features:
- "Auto-Reclosure" feature enables charging to restart following a minor fault, thereby reducing the chance of having an undercharged battery
- New cable design prevents cord from freezing and cracking in extreme weather
- Status indicator lights indicate power, charging status, and faults
- Integrated On/Off switch to minimize standby power
- Additional safety features include over current, over voltage, under voltage and short circuit protection
- Compact size, and unique wiring compartment design provides a hassle-free installation
- Water-Resistant enclosure is rated NEMA Type 3R for indoor and outdoor use
- Thermoplastic vandal-proof enclosure withstands the harshest environments
In The Box:
- Evr-Green Charging Station
- 18 ft Charging Cable
- Wall Mounting Bracket
- 2 x M5 teeth screws
- 4 x M6 Hexagonal Expansion Screws
- 2 x RFID Cards
- Administrator RFID Card
NOTE: This EV home charging station does not include a recommended hook for hanging the charge connected cord when not in use.
Tech Specs
- Part Number: EV320
- UPC: 007847787757
- Warranty: 2-Year Limited
Electrical
- Amperage: 32A
- Breaker: 40A
- Voltage: 208/240 VAC
- Output Power: 7.6kW
- Phantom/Standby Power: < 7.5 W
- Short Circuit Current Rating: 20 mA CCID per UL 2231
- Charging Connector: #10 AWG SAE J1772
- Number of Phase / Wire: L1, L2 and Ground, Bottom Feed
Environmental
- Operating Humidity: 0 to 95 % Relative, Non-Condensing
- Charging Cord Operating Temperature: -22°F to 122°F (-30°C to 50°C)
- Operating Altitude: Up to 6,500 ft. (2,000 m)
Material
- Locking Mechanism: Phillips Head Screws, No Padlock Option
- Enclosure Material: Plastic (PC+PBT)
- Enclosure Rating: NEMA Type 3R
- Status Indicator: Power Present, Charging, Fault
- Cable Length: 18 ft. (5.5 m)

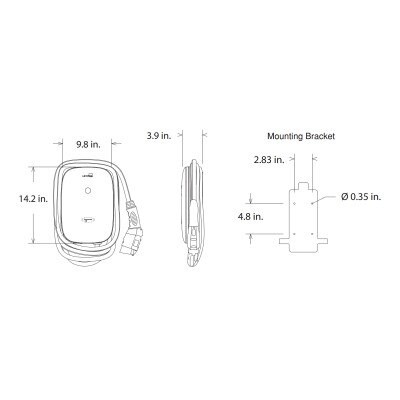

- Dimensions: 13.8 x 9.8 x 5.1 inches (350.5 x 228.6 x 129.5 mm), excluding charging cable, mounting plate and cable holder
- Standards & Certifications: UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, RoHS
