NETIO PowerCable 2PB Smart Flat Power Distribution Unit
Product Description
The NETIO PowerCable 2PB Smart Flat Power Distribution Unit is a compact, intelligent power control solution designed to give you reliable management of two plug-in devices. With its slim, flat design, it's perfect for tight spaces like behind wall-mounted TVs, digital signage, or AV racks where bulky power strips won't fit. This unit combines LAN and Wi-Fi connectivity, allowing you to manage power remotely through a web browser, mobile app, or cloud service. It also supports a wide range of open APIs such as MQTT, JSON, SNMP, and Modbus/TCP, making it highly versatile for automation, IT, and AV/IoT integration. With Zero Voltage Switching (ZVS) technology, it ensures safe and reliable On/Off control of connected devices while minimizing wear on electronics and extending the unit's lifespan.
- Two individually controlled 100–240V AC outlets (up to 10A total load)
- Zero Voltage Switching (ZVS) for safe switching and longer relay life
- Remote control via web browser, NETIO Mobile 2 app, or NETIO Cloud
- Open API support (MQTT, JSON, Modbus/TCP, SNMP, Telnet, and more)
- Built-in functions: Ping WatchDog, Scheduler, Power-up Delay
- Compact, flat design ideal for use behind displays or in tight AV spaces
Why You Would Use This Product:
The NETIO PowerCable 2PB is an excellent solution for anyone who needs remote power control at home. For example, you can mount a flat-screen TV on the wall and still easily manage power to the TV and a soundbar without a bulky power strip. In a home office, it lets you remotely reboot your modem and router when the internet drops, saving you the hassle of unplugging cables. It's also perfect for digital signage or home theater systems where devices need to power up or shut down on a schedule. Whether you want energy-efficient scheduling, remote troubleshooting, or just simplified power management, this smart power distribution unit makes it possible.
In The Box:
- Netio PowerPDU 4KS Smart Power Distribution Unit
- Manual
Notes:
- NETIO Discover is needed for the first installation of the product.
- Requires connection to the Internet.
Tech Specs
- Part Number: PowerCable 2PB
- EAN: 8594185581192
- LAN (RJ45): Yes
- WiFi: Yes
- Online Demo: Yes
- Web: Built-in web server
- FW Upgrade: Yes - Web
- Mobile App: NETIO Mobile 2 (LAN + Cloud)
- Service: NETIO Cloud (for a fee)
- Installation Without a Cloud Connection: Yes
- Control Button: Yes
- Open API (M2M Protocols):
- JSON over HTTP (default)
- MQTT-flex (extended MQTT, SSL enabled)
- HTTP Push JSON
- HTTP Push XML
- SNMP v1
- SNMP v3
- Modbus / TCP
- XML over HTTP
- URL API (http get) (writing only)
- Telnet (outputs only)
- Lua Support: No
- Condition & Rules: Yes
- Scheduler Function (Weekly Calendar): Yes
- IP (Ping) WatchDog Function: Yes (Condition & Rules)
- Power WatchDog Function: Yes (metered Outputs 1&2 only)
- Sending Emails: No
- Power Input: NEMA 5-15P [100/125V; max 15A per output (UL rated 12A)]
- Power Outputs: 2x NEMA 5-15R [max 15A per output (UL rated 12A)]
- Metered Outputs: None
- DI (Digital Inputs): None
- Internal Consumption: Max 2 W
- SPD – Surge Protection: Yes, type 3
- ZVS (Zero Voltage Switching): Yes
- IOC (Output State Independent from FW Updates): Yes
- PowerUp State of Outputs: On / Off / LAST state
- Mechanical Characteristics:
- Terminal Block

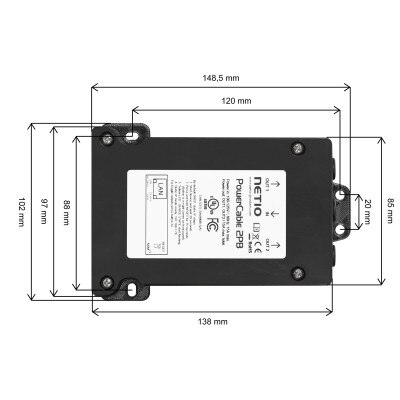

- 4.02 x 1.26 x 5.87 in / 0.43 lb
- (102 x 32 x 149 mm / 197 g)
- Cables: 3x 11.81 in (30 cm)
- Protection: IP20
- Sound Output: No
- Temperature Range: -4 °F to +131 °F (-20 °C to +55 °C)
- Relative Humidity: 0 – 97% (non condensing)
- UL Certified: Yes
- TAA Compliant: Yes
