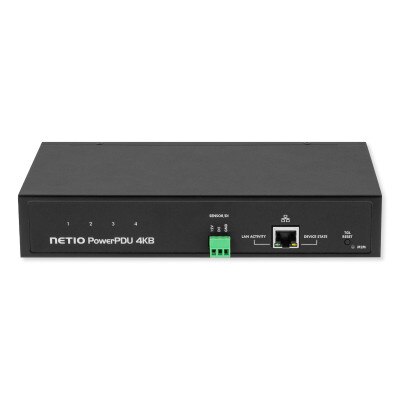

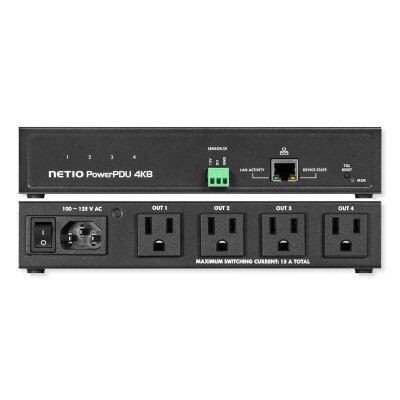

NETIO PowerPDU 4KB Smart Power Distribution Unit, 4 NEMA 5-15R Outputs

The NETIO PowerPDU 4KB is a smart power distribution unit designed to provide precise electrical metering and remote On/Off/Reset control of four individual power outlets plus one digital input. It allows users to remotely monitor power consumption of devices plugged into each outlet over LAN or cloud networks, making it an ideal solution for energy-efficient and automated power management. Each outlet is equipped with full metering capabilities that measure voltage, current, power, and energy consumption, delivering detailed analytics for effective power usage tracking. Additionally, the digital input provides additional control over selected outlets when connected to an external switch or temperature sensor that triggers under preprogrammed criteria.

Users control their NETIO PDU's through the NETIO Cloud and the NETIO Mobile 2 app which provide secure management and remote accessibility. From the NETIO Mobile 2 app or NETIO Cloud web portal, PowerPDUs can utilize extensive scheduling functions, including weekly timers and configurable power-up delays to allow for fully automated power cycling sequences. With support for multiple communication protocols such as HTTP(S) JSON, SNMP, Modbus TCP, and MQTT-flex, users can easily integrate this PDU into existing building automation or monitoring systems. Firmware can be upgraded via the NETIO Mobile 2 or NETIO Cloud web interface, ensuring ongoing enhancements and security.

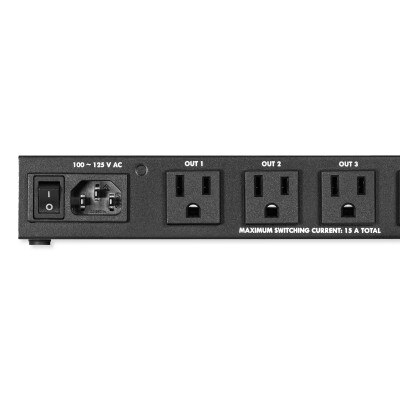

• Four metered and switched NEMA 5-15R outlets allow individual On/Off/Reset control and energy monitoring
• Digital Input (DI) port supports dry contact triggers or external sensor integration
• Zero Current Switching (ZCS) technology that prevents relay wear and safely handles high inrush currents from demanding equipment
• Configurable power-up delay sequencing and built-in watchdog/ping reboot enhances reliability
• Receive alerts and issue On/Off/Reset commands via the NETIO Mobile 2 app and secure NETIO Cloud web portal
• Open API (JSON/HTTP, Modbus/TCP, SNMP, MQTT, Telnet) allows seamless third-party system integration
• AV control drivers facilitate easy integration into Crestron, Control4, RTI, Savant, and other automation systems
• Compact 1U rack-mount design suitable for IT, AV, and industrial applications

Why You Would Use This Product:

The NETIO PowerPDU 4KB is perfect for residential and commercial users who need precise control and monitoring of multiple devices in one centralized unit. For home automation, it can manage power for entertainment centers, server closets, or smart appliances, helping reduce energy consumption and prolong device lifespan through scheduled power cycles. In commercial settings such as small data centers, offices, or retail stores, it ensures orderly power management and remote reboot capability for critical IT equipment, reducing downtime and maintenance visits. Additionally, the digital input can be used as an additional control trigger via an external switch or temperature sensor that can automate cooling fans or HVAC units based on temperature sensor inputs, protecting sensitive electronics. Its integration with cloud and mobile platforms makes it an excellent choice for users requiring flexible, remote access to power control.

This NETIO PDU is compatible with the NETIO Mobile 2 app (iOS and Android) and NETIO Cloud service. With the app, you can discover devices on your local Internet network, switch individual outlets on/off or reset them, view real-time power consumption metrics per output, configure scheduling, and manage multiple PDUs through NETIO Cloud. NETIO Cloud is a paid subscription service that provides users remote monitoring and control applications of their personal or business infrastructure from anywhere with an Internet connection. This mobile integration enhances user experience by providing an intuitive interface for power monitoring and control on the go.

In The Box:

• NETIO PowerPDU 4KB Unit
• Power Cord
• Manual

Notes:

• Requires a wired LAN connection; does not support Wi-Fi.
• For indoor, professional, or IT/AV use only.
• Compatible with 110V/230V AC systems; check power compatibility before installation.
• Mobile app and voice control are not included; remote control is available via browser or API integration.
• Professional installation is recommended for integration into IT or AV racks.
