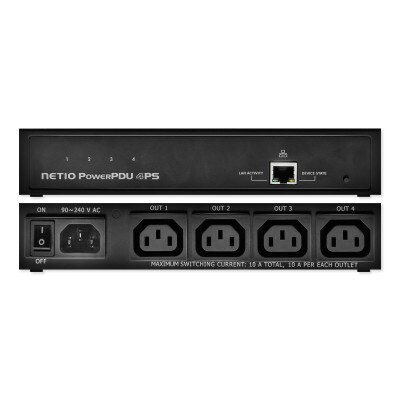

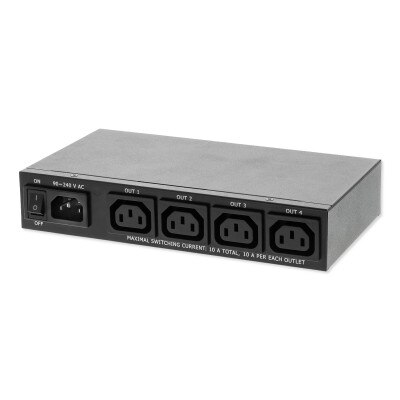

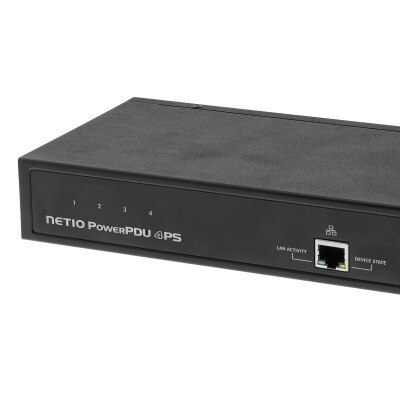

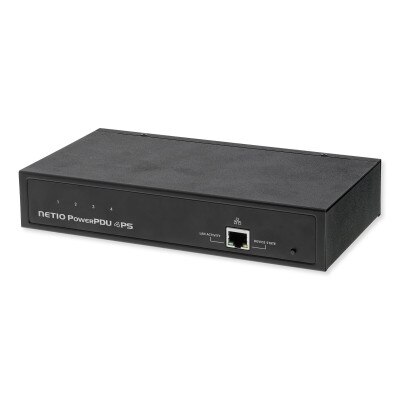

NETIO PowerPDU 4PS Smart Power Distribution Unit, 4 IEC-320 C13 Outputs
Product Description
The NETIO PowerPDU 4PS is a smart, rack-mountable power distribution unit with four individually switchable power outputs for precise control over connected devices. Designed for professional use, it allows remote on/off switching for each outlet through its intuitive web interface or via supported M2M protocols. Built for reliability, the PowerPDU 4PS incorporates Zero Current Switching (ZCS) technology to protect relay contacts and connected equipment, even when controlling loads with high inrush current like LED lighting or electric motors. With its compact 1U design, the PowerPDU 4PS fits neatly into any standard 19-inch rack or can be placed on a shelf for standalone applications. Whether you're managing IT hardware, AV systems, or home automation setups, this PDU offers the flexibility and control needed for efficient power management.
- Four individually switchable 110–230V AC outputs
- Zero Current Switching (ZCS) to extend relay life and protect against high inrush loads
- Remote control via web interface, HTTP, Telnet, MQTT-flex, SNMP, and other M2M protocols

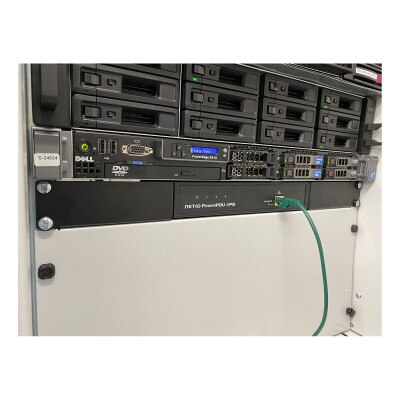

- Durable metal 1U rack-mountable housing for professional installations
- Scheduler for automated outlet switching based on time or conditions
- Firmware updates for security improvements and new features
- LED indicators for quick outlet status checks
Why You Would Use This Product:
The PowerPDU 4PS is ideal for home or small office environments where you want remote control of multiple devices from a single unit. At home, it can be used to power-cycle your home theater equipment, reboot your router and modem remotely, or schedule lights and appliances to turn on and off automatically. You could also manage grow lights in a greenhouse, control pumps in an aquarium setup, or ensure that idle devices are powered down to save electricity.
In The Box:
- NETIO PowerPDU 4PS Smart PDU Power Distribution Unit
- Manual
Notes:
- NETIO Discover is needed for the first installation of the product.
- Requires connection to the Internet.
Tech Specs
- Part Number: PowerPDU 4PS
- EAN: 8594185581260
- LAN (RJ45): Yes
- WiFi: No
- Online Demo: Yes
- Web: Built-in web server
- FW Upgrade: Yes (via device WEB interface)
- Mobile App: NETIO Mobile 2 (Android & iOS)
- Cloud Connection Needed for Installation: No
- Control Button for Each Output: No
- Service: NETIO Cloud (paid service, secured by TLS)
- Open API (M2M Protocols):
- JSON over HTTP (default)
- MQTT-flex (extended MQTT, SSL enabled)
- HTTP Push JSON
- HTTP Push XML
- SNMP v1
- SNMP v3
- Modbus / TCP
- XML over HTTP
- URL API (http get) (outputs only)
- Telnet (outputs only, backwards compatibility with KSHELL)
- Lua Support: No
- Scheduler Function: Yes
- IP WatchDog Function: Yes
- Power WatchDog Function: Yes
- Sending Emails: No
- Events Log: Yes (web)
- Power Input: 1x IEC320 C14 na 110/230V (10A)
- Mechanical Power Switch: Yes

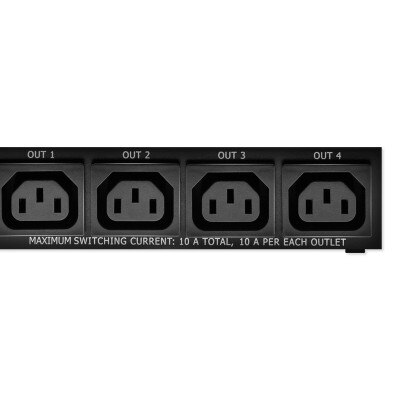

- Power Output: 4x IEC-320 C13 (max 10A)
- Number of Controlled Outputs: 4
- Electrical Measurement: No
- Number of Metered Outputs: 0
- Internal Consumption: Max 1,8 W
- SPD - Surge Protection: Yes, type 3
- Switching Element: relay SPST-NO, ZVS
- ZVS (Zero voltage switching): Yes
- IOC (output state independent from FW update): Yes
- PowerUp State of Outputs: On / Off / LAST state
- Mechanical Characteristics: Metal housing, 220 x 40 x 120 mm
- Mounting Position: Horizontal (1x / 2x) / vertical in a 19" rack
- Protection: IP30
- Sound Output: No
- Temperature Range: -20°C to +65°C
- Relative Humidity: 0 – 97% (non condensing)
- Designed and Manufactured: European Union (Czech Republic, Prague)
