Optex Indoor Recessed Mount PIR Detector, Curtain Detection
Product Description

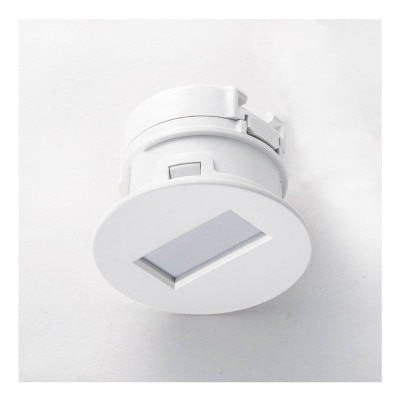

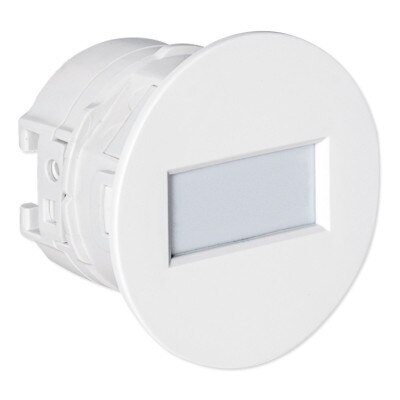

The Optex Indoor Recessed Mount PIR Detector, Curtain Detection, has a compact design for discreet installations on a ceiling or wall and features detection sensitivity, allowing you to select High, Medium, or Low options. It features vertical or horizontal detection coverage and comes with a tamper switch to notify you when the sensor is being tampered with.

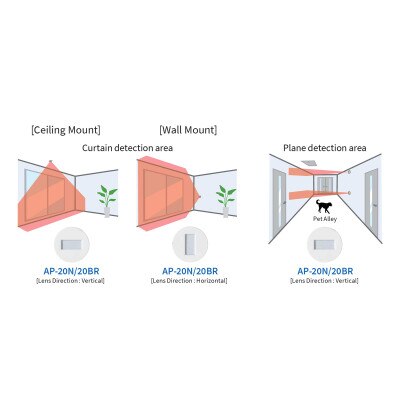

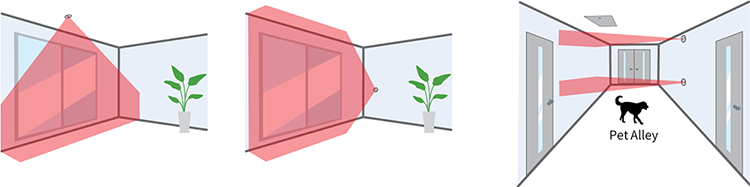

- Ceiling mount: 20' x 3'3" detection at 14'9" height
- Wall mount: 20' x 14'9" detection at 4'11" height
- Curtain or plane detection
- Compact and discreet design
- Detection sensitivity: High, Medium, Low selectable
- Can be installed with recessed mount on the walls or ceiling
- Tamper function
Why You Would Use This Product:
The Optex Indoor Recessed Mount PIR Detector, Curtain Detection, is ideal for discreet indoor surveillance because It has a compact design that keeps it unobtrusive while its lens design allows for various installation options for vertical or horizontal coverage. It can be installed above (ceiling) or to the side (wall) of curtains or in a hallway just above the height of a walking pet.
In The Box:
- Indoor Recessed Mount PIR Detector
- Manual
Tech Specs
- Part Number:
- AP-20NB(C): Wired
- AP-20NBR(C): Battery Operated
- UPC:
- AP-20NB(C): 788924505046
- AP-20NBR(C): 788924505053
- Detection Method: Passive Infrared
- Detection Area:
- Ceiling mount: 6.0 m x 1.0 m (20' x 3'3") at 4.5 m (14'9") height
- Wall mount: 6.0 m x 4.5 m (20' x 14'9") at 1.5 m (4'11") height
- Mounting Height:
- Ceiling mount: 2.5 m to 4.5 m (8'2" to 14'9")
- Wall mount: 1.5 m (4'11"): Horizontal, 1.0 m (3'3"): Vertical

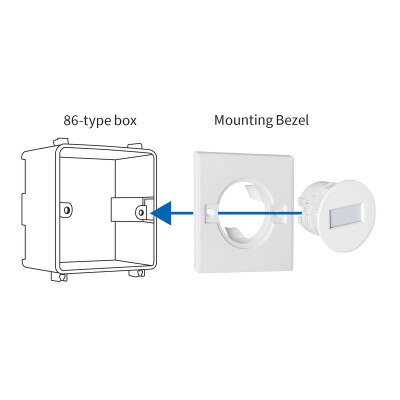

- Mounting Type: Recessed ceiling mount/, Wall mount/ 86-type box mount
- Sensitivity: 2.0°C at 0.6 m/s (3.6°F at 2'/s)
- Detection Speed: 0.3 to 3.0 m/s (1'/s to 9'10"/s)
- LED indicator:
- AP-20NB(C):
- Warm-up upon power on: blinking
- Stand-by: off
- Alarm: solid on
- AP-20NBR(C):
- Warm-up upon power on: blinking
- Stand-by: off
- Walk test: solid on
- Alarm: solid on
- Alarm Cycle: Approx. 2 s
- Battery Saving Timer:
- AP-20NBR(C): 120 s/ 5 s selectable
- Alarm Output:
- AP-20NB(C): N.O./N.C., 28 V DC 200 mA max.
- AP-20NBR(C): N.O./N.C., 3.6 V DC 10 mA max.
- Tamper switch:
- N.C. 28 V DC 100 mA max
- The contact opens once the casing is detached
- Warm-up Time: Approx. 60 s
- Power Supply:
- AP-20NB(C): 9.5 to 16 V DC
- AP-20NBR(C): 2.7 to 3.6 V DC (CR123A battery)
- Current:
- AP-20NB(C):
- 12 V DC
- Stand-by: 11mA, Max.: 13 mA
- AP-20NBR(C)
- 3 V DC
- Stand-by: 10mA, Max.: 4 mA
- PIR Sensitivity: H/ M/ L
- Weight: 50 g (1.76 oz)
- Operation Temperature: -4°F to +122°F (-20 to +50°C)
- Operation Humidity: < 95%
- Location: Indoors
- Dimensions:
- Diameter 2.05 x 1.40 inches (diameter 52 x 35.5 mm): without switch box mount
- 3.39 x 3.39 x 1.44 inches (86 x 86 x 36.5 mm): with 86-type box mount
