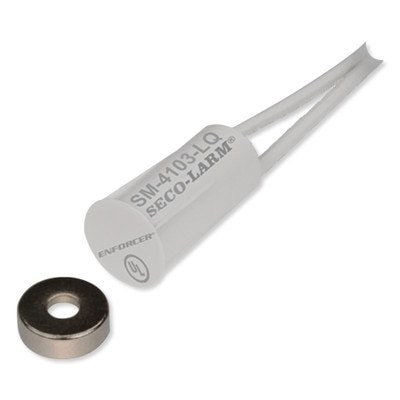

Seco-Larm Enforcer Magnetic Contact, 3/8" Rare-Earth Recessed, 1/2" Gap, With 18-Inch Wired Leads
Product Description
- Used for protecting sliding doors and windows where space is limited
- Rare-earth magnet with nickel plating to protect against chipping and corrosion
- Contact reed switch is SPST, ruthenium on gold under-plating, for a long life
- High-impact ABS plastic
- Miniature size assures ease of concealment
- Switch and magnet have ribs for securing in holes
- 1/2" (13mm) Gap, white, with 18" (46cm) Leads and 9/16" (14.5mm) switch
- 3/8" Press-fit with stubby 9/16" switch
- Lifetime limited warranty
In The Box:
- Magnetic Contact
- Manual
Tech Specs
- Part Number: SM-4103-LQ/W
- Loop Type: Closed Loop
- Electrical Configuration: N.O. (SPST)
- Operation Gap: 1/2" (13mm)
- Connectors: 18" (46cm) Leads
- Color: White
- Material:
- Case: High-impact ABS plastic
- Contacts: Ruthenium on gold underplating
- Contact Rating:
- 1.0A@10VDC (max.)
- 10W (max.)
- Operating Temperature: -15° to 160° F (-25° to 70° C)
- Switch Cycles: 50 Million (0.1mA@5VDC)
- Dimensions: 9/16" x 7/16" (14 x 11 mm)
- Magnet: Rare-earth neodymium alloy
- Credentials: UL, RoHS
- Warranty: Lifetime limited
