Seco-Larm Enforcer Steel Door Magnetic Contact, 3/4" Recessed, NC, 1" Gap
Product Description
- Used for steel framed doors and windows where space is limited or to avoid unsightly installations
- Strong one-piece construction
- 18" (46cm) wire leads
- High-impact ABS plastic
- Switch and magnet have ribs for securing in holes
- Contact reed switch is SPST, iridium-plated to have a high melting point and Vickers hardness for higher power handling and longer expected life
- For closed loop circuits
- 1" (25mm) gap
- Lifetime limited warranty
In The Box:
- Magnetic Contact
- Manual
Tech Specs
- Part Number:

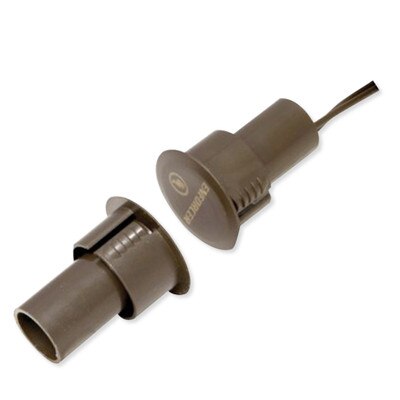

- SM-4105-LQ/B: Brown

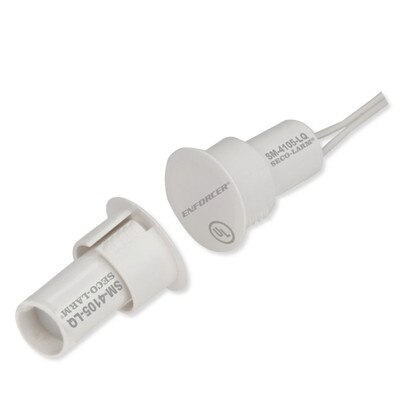

- SM-4105-LQ/W: White
- Loop Type: Closed Loop
- Electrical Configuration: N.O. (SPST)
- Operation Gap: 1" (25mm)
- Connectors: 18" (46cm) Leads
- Material:
- Case: High-impact ABS plastic
- Contacts: Iridium-plated
- Contact Rating:
- 1.0A@10VDC (max.)
- 10W (max.)
- Operating Temperature: -15° to 160° F (-25° to 70° C)
- Switch Cycles: 50 Million (0.1mA@5VDC)
- Dimensions:
- Switch: 1-3/16"x 15/16" (30x x 24 mm)
- Magnets: 1-3/16"x 15/16" (30x x 24 mm)
- Magnet: Rare-earth neodymium alloy
- Credentials: UL, RoHS
- Warranty: 2 Years
