Shelly Wi-Fi Dimmer 2 Smart Relay, No Neutral

$38.99
SKU: SHDIMMER21

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

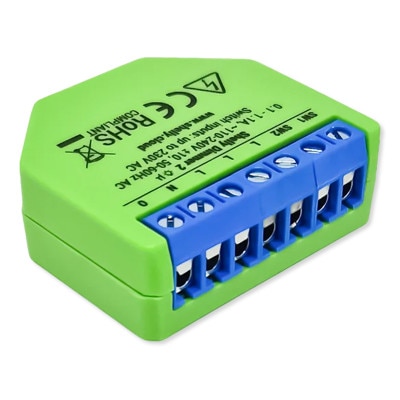

The Shelly Dimmer2 Smart Wi-Fi Module, No Neutral allows you to dim and brighten 0-10V compatible lights, including LEDs and fluorescents with unparalleled ease. With built-in Wi-Fi, you can control your lights from anywhere using the Shelly app (for iOS and Android), or add the device into a smart home ecosystem like Google Home and Amazon Alexa. This Wi-Fi dimmer module includes 0-10V outputs for versatile applications, along with two switch/button inputs (S1 and S2) for light control and two power supply inputs (1N and 1L) for connecting Live and Neutral terminals. Its compact size ensures easy installation into standard electrical enclosures for both residential and commercial spaces, while features like scheduling and automation help improve energy efficiency. Whether you want to enhance ambiance, reduce energy usage, or simplify lighting control, this dimmer relay is a must-have addition to your smart home ecosystem.

  • 0-10V dimming support for precise light control with LEDs and fluorescents
  • Built-in Wi-Fi for direct app control without requiring a hub

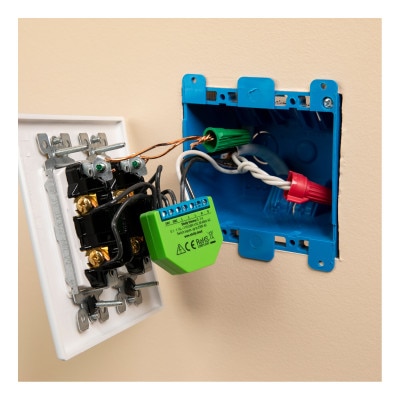

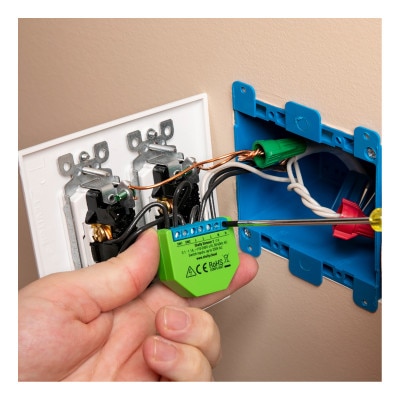

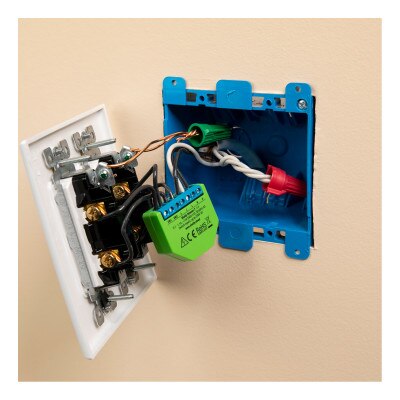

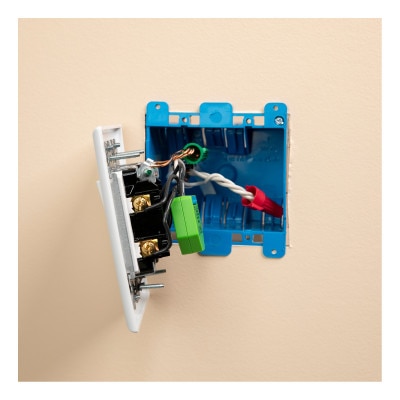

  • Compact size for easy installation in standard electrical enclosures
  • Advanced scheduling and automation for energy efficiency
  • Compatible with Google Home, Amazon Alexa, and Home Assistant
  • Scripting support for webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

Why You Would Use This Product:

The Shelly Dimmer2 Smart Wi-Fi Module, No Neutral is perfect for anyone looking to add convenience and flexibility to their lighting system. Use it to create the perfect atmosphere for movie nights, dinners, or relaxing evenings by dimming lights to your preference. Schedule your lights to gradually brighten in the morning for a gentle wake-up or dim at bedtime for improved sleep. It's also ideal for commercial applications like retail stores, offices, and restaurants where adjustable lighting can enhance customer experiences or improve energy efficiency.

In The Box:

  • Shelley Dimmer 2
  • Manual

NOTE: Requires connection to a Wi-Fi network.

Tech Specs

  • Part Number: Dimmer2-1
  • EAN: 3800235262184

Power

  • Power Supply AC: 110-230V ±10%, 50/60Hz

Special Functions

  • Device Temperature Protection: Yes; up to 203°C (95°C)
  • Overload Protection: Yes
  • Power Measurement: Yes
  • Dimming: Yes
  • Operational Current: 0.1-1.1 A
  • Dimmable LED: 50-200VA / 10W ~ 200W
  • Incandescent and Halogen Light Sources: 10-220W

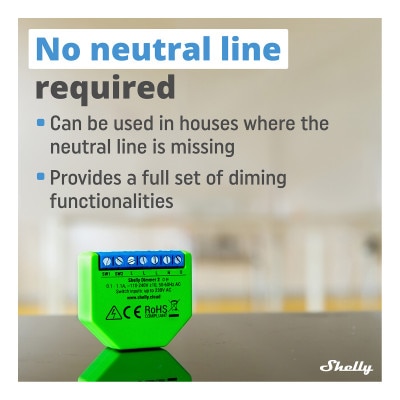

  • Works Without a Neutral Line: Yes

Features

  • Colour Changing: No
  • Predefined Effects: Yes
  • Channels: 1 Channel
  • Operating Temperature: 32 to + 104°F (0 ~ 40°C)
  • Device Power Consumption: <1 W
  • Intelligent On/Off: Yes
  • Local and Remote Control: Yes
  • Sunrise/Sunset: Yes
  • Weekly Schedule: Yes
  • UL Listed Option: No

Connectivity

  • Wireless/WiFi Protocol: 802.11 b/g/n
  • Radio Frequency: 2400 ~ 2500 MHz
  • Range: up to 50 m outdoors and up to 30 m indoors (depending on the building materials)

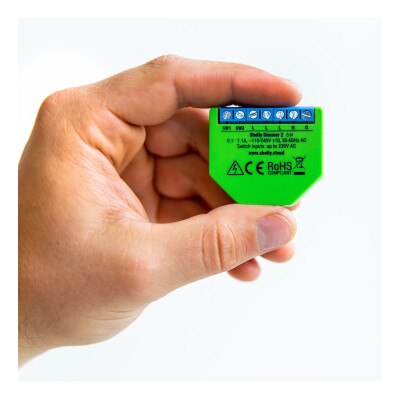

  • Size: 42mm x 36mm x 14 mm
