Shelly Wi-Fi PM Mini Gen3 Smart Power Meter
Product Description

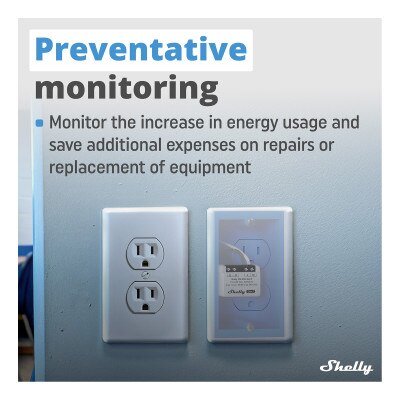

The Shelly Wi-Fi PM Mini Gen3 Smart Power Meter is the perfect solution for monitoring and managing your home's energy consumption. This compact device combines precise power measurement with advanced automation capabilities, enabling you to track energy usage in real-time and optimize efficiency across your electrical devices. Designed for easy installation, the Shelly PM Mini fits neatly behind outlets, switches, or appliance enclosures, giving you a seamless integration without the need for a hub. Equipped with built-in Wi-Fi and Bluetooth, this device provides quick setup and reliable connectivity. Designed with 2 line inputs on screw terminals (1L and 1N) and 2 load circuit outputs (bridged internally), this device supports various load types, including resistive loads (e.g., incandescent bulbs and heaters), capacitive loads (e.g., LED light drivers, capacitor banks, electronic equipment, motor start capacitors), and inductive loads (e.g., transformers, fans, refrigerators, air-conditioners).
- Built-in Wi-Fi for direct control via the Shelly app—no hub needed
- Real-time power monitoring tracks energy consumption with precision

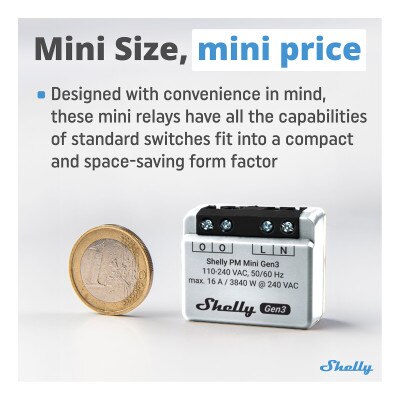

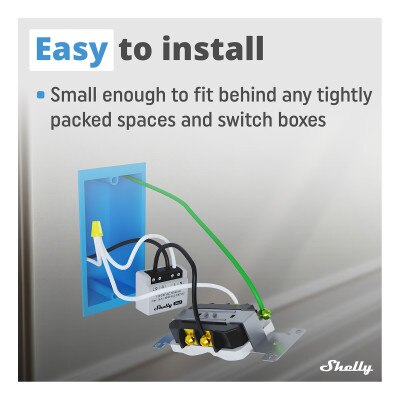

- Space-saving design with easy installation in standard electrical enclosures with its compact size
- Supports up to 16 A at 240 VAC and can be used for a variety of applications from refrigerators to washing machines
- Advanced scheduling and scene setup for improved energy efficiency and convenience
Why You Would Use This Product:
The Shelly PM Mini Gen3 is an essential tool for homeowners who want to take control of their energy consumption and reduce their electricity bills. Use it to monitor your energy-hungry appliances, such as refrigerators, heaters, or air conditioners, and identify opportunities to save on energy costs. For example, you can set schedules to power down devices during off-peak hours or when not in use. The device's compact size makes it ideal for automating lighting systems, ensuring they only operate when needed. By integrating it with your smart home platform, you can create customized scenes, such as automatically turning off all appliances when you leave home, adding convenience and efficiency to your daily life.
In The Box:
- Wi-Fi PM Mini Gen3 Smart Power Meter
- Manual
Notes:
- Requires connection to a Wi-Fi network.
- This is a power meter only – does not have a built-in relay.
Tech Specs
- Part Number: Gen 3 PM Mini
- EAN: 3800235261613
- Power Supply: 110 – 240 VAC
- Power Consumption: <1.2 W
- External Protection: Tripping characteristic B or C, max. 16A max. rated current, min. 6 kA interrupting rating, energy limiting class 3
- Max Measurement Power: 3840 W
- Max. Measurement Current: 16 A
- Max. Measurement Voltage: 240 VAC
- Power Measurement: Yes
- Wi-Fi Protocol: 802.11 b/g/n
- RF Band: 2401 – 2495 ÃŒHz
- Max. RF Power: <20 dBm
- Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
- Bluetooth Protocol: 4.2
- RF Band: 2400 – 2483.5 MHz
- Max. RF Power: <4 dBm
- Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
- CPU: ESP-Shelly-C38F
- Flash: 8 MB
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- MQTT: Yes
- Scripting: Yes
- UDP: Yes
- Advanced Schedules: Yes
- KVS (Key-Value Store): Yes
- Screw Terminals Max Torque: 0.4 Nm / 3.5 lb/in
- Conductor Cross Section: 0.2 to 2.5 mm / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
- Conductor Stripped Length: 6 to 7 mm / 0.24 to 0.28 in
- Mounting: Wall box
- Terminal Color: Black
- Shell Material: Plastic
- Shell Color: Light gray, C: 0%; M: 0%; Y: 0%; K: 20%
- Ambient Working Temperature: -5 °F to 105 °F (-20 °C to 40 °C)
- Humidity: 30% to 70% RH
- Max Altitude: 2000 m / 6562 ft
- Size (HxWxD): 1.34 x 1.11 x 0.63 inches (29x34x16 mm)
- Weight: 13 g / 0.46 oz
- Warranty: 3 Year
