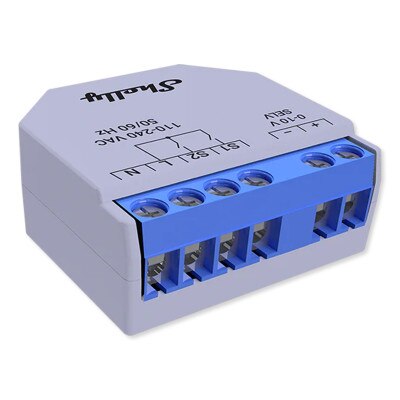

Shelly Wi-Fi Plus 0-10V Dimmer Smart Relay

$18.49
SKU: SHPLUS010VDIMMER

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

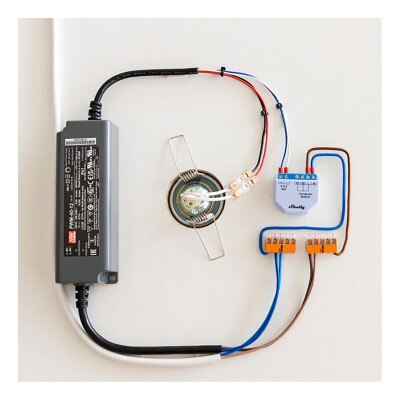

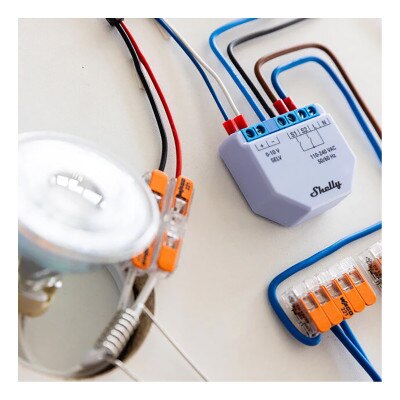

The Shelly Wi-Fi Plus 0-10V Dimmer Smart Relay allows you to dim and brighten 0-10V compatible lights, including LEDs and fluorescents with unparalleled ease. With built-in Wi-Fi, you can control your lights from anywhere using the Shelly app (for iOS and Android), or integrate the device with popular smart home platforms like Google Home and Amazon Alexa. This Wi-Fi dimmer module includes 0-10V outputs for versatile applications, along with two switch/button inputs (S1 and S2) for light control and two power supply inputs (1N and 1L) for connecting Live and Neutral terminals. Its compact size ensures easy installation into standard electrical enclosures for both residential and commercial spaces, while features like scheduling and automation help improve energy efficiency. Whether you want to enhance ambiance, reduce energy usage, or simplify lighting control, this dimmer relay is a must-have addition to your smart home ecosystem.

  • 0-10V dimming support for precise light control with LEDs and fluorescents
  • Built-in Wi-Fi for direct app control without requiring a hub

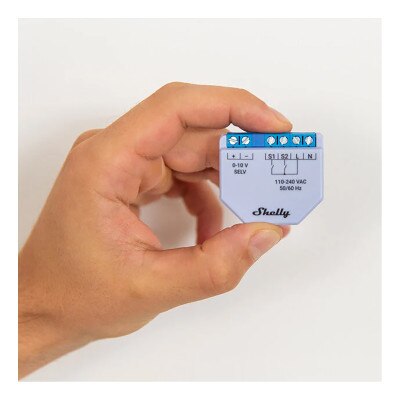

  • Compact size for easy installation in standard electrical enclosures
  • Advanced scheduling and automation for energy efficiency
  • Compatible with Google Home, Amazon Alexa, and Home Assistant
  • Scripting support for webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

Why You Would Use This Product:

The Shelly Wi-Fi Plus 0-10V Dimmer Smart Relay is perfect for anyone looking to add convenience and flexibility to their lighting system. Use it to create the perfect atmosphere for movie nights, dinners, or relaxing evenings by dimming lights to your preference. Schedule your lights to gradually brighten in the morning for a gentle wake-up or dim at bedtime for improved sleep. It's also ideal for commercial applications like retail stores, offices, and restaurants where adjustable lighting can enhance customer experiences or improve energy efficiency.

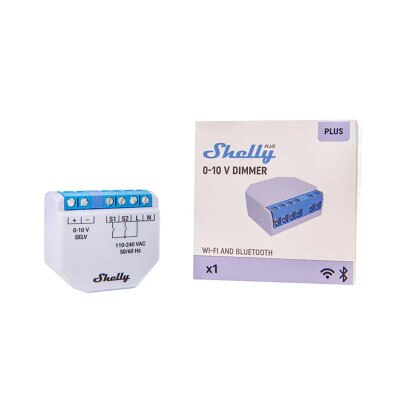

In The Box:

  • Wi-Fi Plus 0-10V Dimmer Smart Relay
  • Manual

NOTE: Requires connection to a Wi-Fi network.

Tech Specs

  • Part Number: Plus 0-10V Dimmer
  • EAN: 3800235265703
  • Max. Altitude: 2000 m/6562 ft
  • Power Supply: 110 – 240 VAC ±10%
  • Power Consumption: <1.2 W
  • Neutral Not Needed: No
  • 0-10V Voltage Control Type: Current sinking
  • Max. Switching Voltage: 10 VDC
  • Max. Switching Power: 0.35 W
  • Max. Switching Current: 35 mA
  • Internal-Temperature Sensor: Yes
  • Wi-Fi Protocol: 802.11 b/g/n
    • RF Band: 2401 – 2495 ÃŒHz
    • Max. RF Power: <20 dBm
    • Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
  • Bluetooth Protocol: 4.2
    • RF Band: 2400 – 2483.5 MHz
    • Max. RF Power: <4 dBm
    • Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
  • CPU: ESP32-U4WDH
  • Flash: 4 MB
  • Schedules: 20
  • Webhooks (URL actions): 20 with 5 URLs per hook
  • MQTT: Yes
  • Scripting: Yes
  • Screw Terminals Max Torque: 0.4 Nm/3.5 lb/in
  • Conductor Cross Section: 0.5 to 1.5 mm/20 to 16 AWG (solid, stranded, and bootlace ferrules)
  • Conductor Stripped Length: 5 to 6 mm/0.20 to 0.24 in

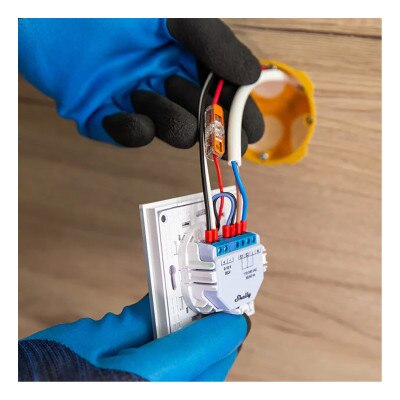

  • Mounting: In-wall
  • Shell Material: Plastic
  • Shell Color: Shell: 2716C, print: black
  • Ambient Working Temperature: -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity: 30% to 70% RH
  • Size (HxWxD): 1.65 x 1.46 x 0.66 ±0.02 inches (42x37x17 ±0.5 mm)
  • Weight: 17 g/0.60 oz
  • Warranty: 3 Year
