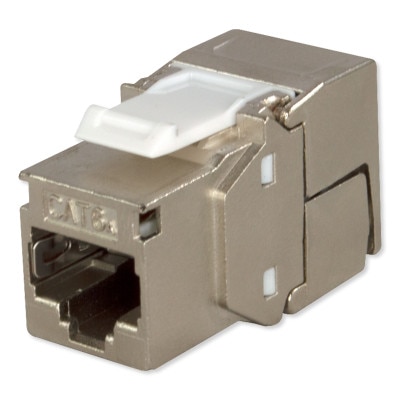

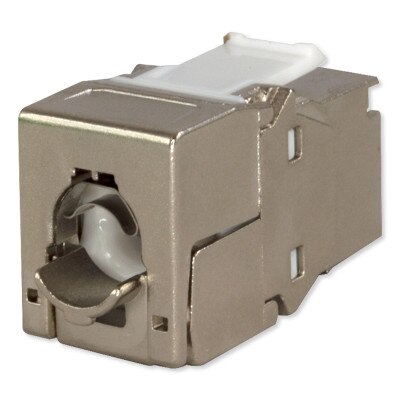

Simply45 10G Rated 180-Degree Shielded Keystone Jack
Product Description
The Simply45 10G Rated 180 Degree Shielded Keystone Jack is for high-bandwidth networks using Cat7a/6a/6 cabling. It has a cabling tool-less design for fast and easy terminations.
Features:
- Fully Shielded Sink Alloy Shell
- Narrow Design Supports Side-by-Side Installation in Patch Panels
- Enhanced Crosstalk (AXT) Cancellation

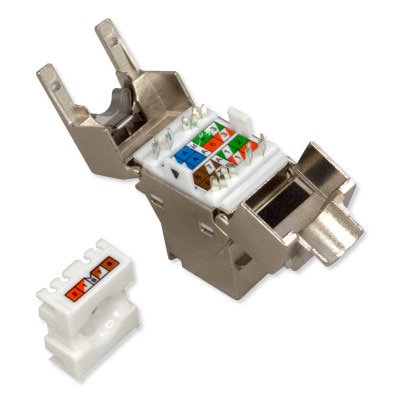

- Wire Layout Diagram Simplifies Termination and Reduces Untwisting of Cable Wires (Wire Pattern Label Type A/B)
- Supports Cat7a/6a/6 Shielded Cabling, 23 AWG

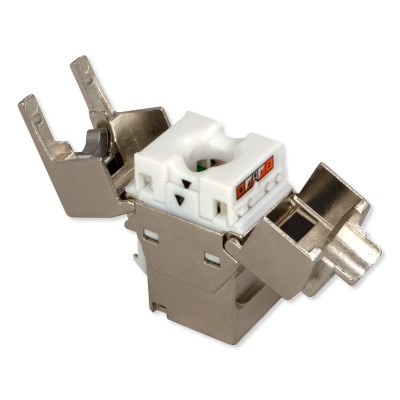

- Requires No Punchdown or Specialty Tooling
- 180° Degree Design is Ideal for Patch Panel Applications
- UL Listed
- Professional Quality
In The Box:
- Simply45 10G Rated 180 Degree Shielded Keystone Jack
Tech Specs
- Part Number: S45-3750
- UPC: 810093720125
- Mechanical: 23AWG Wire Conductors – Cat7a/6a/6 Shielded cabling
- Plug Insertion Life: >=750 times plug in
- Contact Force: 99.2g (3.5oz) FCC Plug
- Plug Retention Force: 30lb (133n/13/3kg)
- Operating Temperature: -40F to 150F (-40C to 66C)
- Electrical: Insulation Resistance: >=500 MΩ
- Dielectric Withstand Voltage: 100VAC RMS 60Hz
- Contact Resistance: <=20mΩ
- Current Rating: 1.5A at 68F
- Contact Plating: 50μ 24ct gold
- Dimensions: 1.5(L) x 1(H) x 0.7(W) inches (38.4 x 25.7 x 18.4mm)
- Standards/Compliance:
- ISO/IEC 11801 Class Ea, E
- ANSI/TIA 568.2-D
- ANSI/TIA 1096-A
- ANSI/TIA 606-C
- EN 50173
- IEC 60603-7-51
- PoE/PoH: IEEE 802.3bt Type 4
- UL 1863, cULus Listed
