Simply45 Loaded 24-Port Cat5e UTP Patch Panel
Product Description

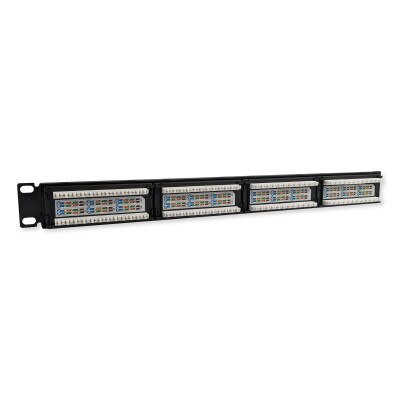

The Simply45 Loaded 24 Port Cat5e UTP Patch Panel easily mounts to standard TIA 19 inch racks. It features rear IDC 110-Punchdown Modules and it's IDC compatible for 110 and Krone tools. Panels are universal fit with heavy-duty steel construction, scratch-resistant powder-coat finish; 110 terminals Color Coded T568A/T568B Wiring Labels.
Features:
- IDC compatible for 110 and Krone tools
- Universal fit panel with heavy-duty steel construction
- Scratch-resistant powder-coat finish
- Includes Cable Ties
- 110 terminals Color Coded T568A/T568B Wiring Labels
- Gold Plated RJ45 port contacts
- ANSI/TIA 568.2-D
- ISO/IEC 11801 Class D
- PoE IEEE 802.3bt
- 1 RU
- RoHS, Reach, and UL Compliant
In The Box:

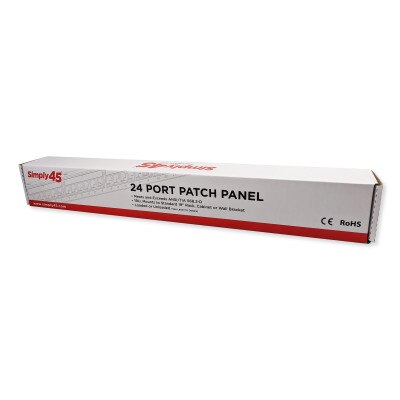

- Simply45 Loaded 24 Port Cat5e UTP Patch Panel
Tech Specs
- Part Number: S45-2524
- UPC: 817777019889
- Dimensions: 19(W) x 13.1(D) x 1.7(H) inches (48.2 x 33.2 x 4.4 cm)
- Construction: Made in the U.S.A.
- Standards/Compliance:
- ANSI/TIA 568.2-D
- ISO/IEC 11801 Class D
- PoE IEEE 802.3bt
- 1 RU
- FCC Part 68
- RoHS Compliant
- Reach Compliant
- UL
