TekTone Apartment Speaker Station, 5 Wire
Product Description
The TekTone Apartment Speaker Station, 5 Wire is a component within the TekTone apartment intercom system and provides point-to-point audio communication with TekTone Entrance or Vandal Panels and door-release operation to grant entry to visitors. The Apartment Speaker Station is equipped with momentary-action push buttons for talk, listen and door operation, giving residents command over their interactions with visitors. The flame-retardant ABS plastic faceplate blends with any setting and protects internal circuitry from fire and other environmental damages. Wiring is just 4 common and 1 selective wires, which supports large Tektone systems, whether they are large in size or spread across large apartment buildings.
- Voice intercoms for TekTone apartment intercom systems with push-and-hold button operated
- 5-wire connections ensure operation across expansive systems and large buildings
- English, Braille, and international symbols label each button
- Flame retardant ABS plastic faceplate protect internal circuitry
Why You Would Use This Product:
The TekTone Apartment Speaker Station, 5 Wire, is one of three intercom options for residents within a TekTone-operated apartment intercom system. If the apartment complex you manage is large in size (component size or physical size), the 5 Wire model is best suited for guaranteed operation.
NOTE: The Apartment Speaker Station requires the AM492xx Entrance Panels, PK543A Amplifier, and SS102A Transformer to operate (all sold separately).
Tech Specs
- Part Number:

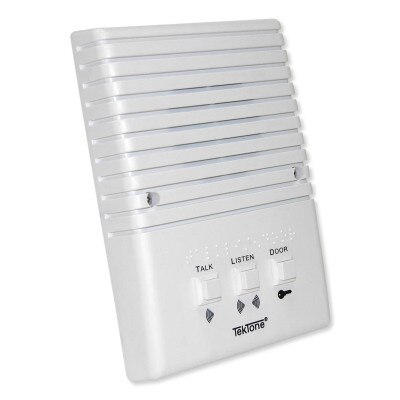

- IR105E: Flush Mount

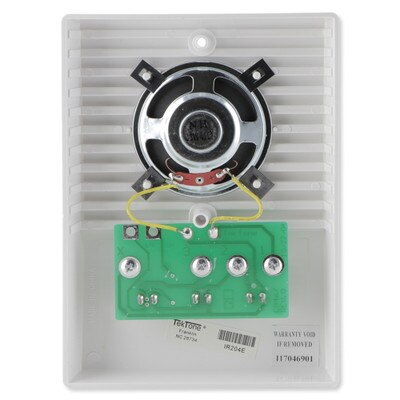

- IR205E: Surface Mount
- Finish: Flame-retardant ABS plastic
- Controls: Individually replaceable push buttons with self-wiping contacts. Identified for talk, listen and door functions
- Speaker/Mic: 2.5 inches (89 mm) with voice response. Also used for electronic tone signals
- Connection: Screw terminals
- Housings: IH103 mounting plate or IH101 box
- Dimensions: 6.875 H x 5 W x 1.25 D inches (175 x 127 x 32mm)
