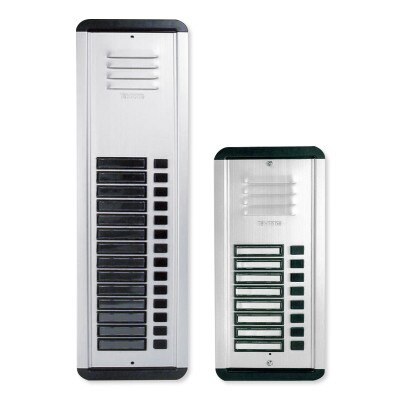

TekTone Vandal-Resistant Entrance Speaker Panel with Slim-Line Surface-Mount
Product Description
TekTone Vandal-Resistant Entrance Speaker Panels with Slim-Line Surface-Mount are equipped with a weather-resistant Mylar speaker protected by a louvered panel and perforated aluminum material. The speaker panel can accommodate up to 16 push buttons and actuators and are available in two different sizes depending upon the number of buttons: 2 to 8, and 10 to 16. In addition, the panel also contains up to 16 name holders with plastic lenses that snap easily into the panel and are individually replaceable. The AM642xxS includes Slim-line surface-mount option for easy installation on exterior surfaces.
Features:
- Vandal-resistant panel and push button actuators
- Hands-free loud-speaking
- Weather-resistant Mylar speaker
- Self-wiping push button switches
- Decorative end caps
- Individually replaceable name holders
- Slim-line surface-mount option
- Simple installation
NOTE: The following items are required for complete operation (all sold separately):
- IR100-series or IR200-series Apartment Stations
- PK543A Amplifier
- SS102A Transformer
Tech Specs
- Part Number:
- AM642/02S: 2 Button
- AM642/04S: 4 Button
- AM642/06S: 6 Button
- AM642/08S: 8 Button
- AM642/10S: 10 Button
- AM642/12S: 12 Button
- AM642/14S: 14 Button
- AM642/16S: 16 Button
- Push-Button: Individually replaceable type with self wiping contacts
- Speaker: 2.5" (64 mm) voice frequency response
- Construction: Anodized extruded aluminum panel
- Name holders Dimensions: 2.125" x 1.0625"
- Dimensions:
- 2 to 8 Button models: 11.25"H x 4.75"W (285 mm x 120 mm)
- 10 to 16 models: 17.25"H x 4.75"W (438 mm x 120 mm)
- Warranty: 1-Year Limited
