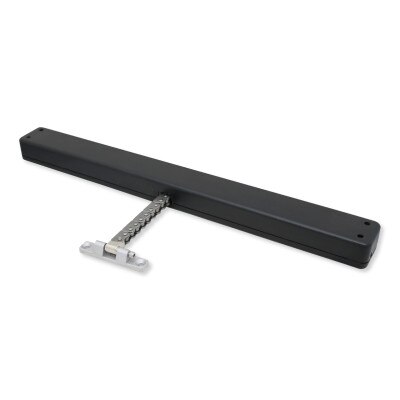

UCS Vega Window Motor System, DC, Black
Product Description
The UCS Vega Window Motor System, DC is ideal for handsfree automation of awning or hopper windows, skylights, or curtain wall vents. It can be installed in commercial, institutional and residential projects, including schools, universities, municipal buildings, offices, gymnasiums, homes, condos, and more. Natural ventilation systems, such as operable windows and skylights, save energy and lower operating costs by reducing air conditioning and heating use.
- Vega actuators are for awning windows, casement windows, hoppers, curtain wall vents, and skylights
- Multiple vents can be wired in parallel and can be operated by building automation systems
- 12-inch (300mm) chain operator; self-adjusting for proper closure at installation
- The operator has stainless steel, double-link chain for rigidity and durability
- Examples of 66 lbs operating force: 48-inch tall/422 lb. vent or a 132 lb. skylight. (with 15" chain)
- Low-profile aluminum case available in Black paint
- The minimum sash height is 10-inches
- Two-year UCS manufacturer's warranty (requires reading AFI Install Guide before purchase, and confirmation of project and installation specs by the licensed electrical contractor)
In The Box:
- Vega DC Chain Actuator
- Manual
NOTES: Do not tamper with the actuator, or the warranty will be voided. Mounting brackets sold separately.
Tech Specs
- Part Number: 41149UUL
- Opening: 12" (300 mm) maximum opening chain stroke
- Dimensions: 1-3/4" H x 1-1/4"W x 17-3/4" L (45 x 32 x 450 mm)
- Force: 66 lbs. (300 N) in push and pull
- Speed: 0.375 inch (9 mm) per second
- Min. Height: Minimum 10" sash height if using pivoting brackets; minimum 35-1/2" (900 mm) if brackets are not used
- Remote: see Vega RF with remote control, or use Vega below with CRM and remote
- Warranty: 2 Year
