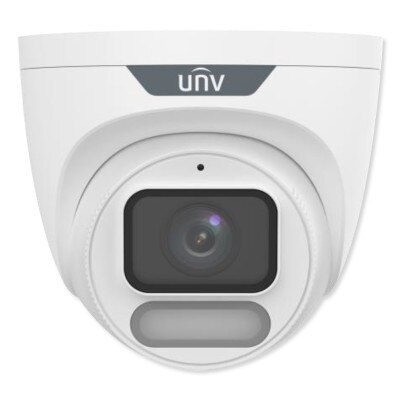

Uniview 4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera
Product Description
The Uniview 4MP HD Eyeball Network Fixed Dome Camera, 2.8mm Lens, provides HD quality video surveillance in just about any lighting condition. This dome security camera monitors your property with a 4MP (2688x1520 @25/20fps) resolution CMOS sensor that works together with Colorhunter software, 120dB true Wide Dynamic Range, and an IR-cut filter to capture HD full color footage in dark or low-light environments at any time of day. Monitor vertical areas such as hallways and aisles with the camera's 9:16 Corridor Mode to change the aspect ratio from 16x9 to 9x16. The camera also captures audio of monitored subjects though the camera' s built-in microphone.
This camera supports intelligent motion detection software that offers additional security features to your surveillance network such as cross line, intrusion (based on human body detection), motion detection, tampering alarm, audio detection.
- IP67 dome camera captures HD footage in 4MP (2688x1520 @25/20fps) resolution
- Supports Ultra 265, H.265, H.264, MJPEG video compression formats
- 9:16 Corridor Mode changes aspect ratio from 16x9 to 9x16 to monitor vertical areas
- Weather-resistant IP67-rated for exceptional performance outdoors
- Powered via 12VDC power supply or PoE connection
- Smart detection software improves security monitoring during live surveillance or when reviewing footage
- Controllable via UNV-Link mobile application, EZStation, and EZAccess desktop software
Why You Would Use This Product:
The Uniview 4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera is ideal for surveillance installations in areas with low light conditions. It can be used to monitor the exterior of your home, or your businesses' entrances, parking lot, dark hallways or aisles, and other critical areas, ensuring the safety and security of your property. The camera' s motion detection capabilities provide additional layers of live and responsive security, making it a valuable tool for proactive surveillance.
In The Box:
- Dome Camera
- Mounting Hardware
- Manual
NOTE: This device supports viewing and management via a web browser on a PC.
Tech Specs
- Part Number: IPC3624SR-ADF28KM-WP
- UPC: 810093329182
Camera
- Resolution: 4MP
- Sensor: 1/1.8"CMOS
- Minimum Illumination: Colour: 0.0003 lux (F1.0, AGC ON)
- Shutter: Auto/Manual, 1 ~ 1/100000s
- Adjustment Angle:
- Pan: 0° to 360°
- Tilt: 0° to 75°
- Rotate: 0° to 360°
- WDR (Wide Dynamic Range): 120dB
- S/N: >56dB
Lens
- Lens Type: 2.8mm@F1.0
- Iris: Fixed F1.0
- Field of View:
- (H): 110.4°
- (V): 60.5°
- (D): 115.2°
- DORI Distance:
- Lens: 2.8 mm
- Detect: 43.4m (142.5.7ft)
- Observe: 17.4m (57.0ft)
- Recognize: 8.7m (28.5ft)
- Identify: 4.3m (14.3ft)
Illuminator
- Warm Light Range: Up to 30m (98ft) IR range
- IR On/Off Control: Auto/Manual
Video
- Video Compression: Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile: Baseline profile, Main profile, High profile
- Frame Rate:
- Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
- Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps;
- Video Bit Rate: 128 Kbps~6144Kbps
- U-Code: Support
- OSD: Up to 4 OSDs
- Privacy Mask: Up to 4 areas
- ROI: Up to 8 areas
- Video Stream: Dual streams
- Auto Scene Match (ASM): Support (Only WDR)
- White Balance: Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
- Digital Noise Reduction: 2D/3D DNR
- Smart IR: Supported
- Flip: Normal; Flip Vertical; Flip Horizontal; 180° ; 90° Clockwise; 90° Anti-clockwise
- Dewarping: N/A
- HLC: Supported
- BLC: Supported
- Defog: Digital Defog
Events
- Basic Detection: Motion detection; Ultra motion detection; Tampering alarm; Audio detection; Cross line (based on human body detection); Intrusion (based on human body detection)
- General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication
Audio
- Audio Compression: G.711U, G.711A
- Audio Bitrate: 64 Kbps
- Two-Way Audio: N/A
- Suppression: Supported
- Sampling Rate: 8KHZ
Storage
- Edge Storage: Micro SD, up to 256GB
- Network Storage: ANR, NAS(NFS)
Network
- Protocols: IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLS
- Compatible Integration: ONVIF (Profile S, Profile G, Profile T); API; SDK
- User/Host: Up to 32 Users
- 2 User Levels: Administrator, Common User
- Security: Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
- Client: UNV-Link; UNV-Link Pro; EZStation
- Web Browser:
- Plug-in Required Live View: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
- Plug-in Free Live View: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
- Audio I/O: N/A
- Alarm I/O: 1N/A
- Serial RS485: N/A
- Built-in Mic: Support
- Built-in Speaker: N/A
- Wi-Fi: N/A
- Network: 1 * RJ45 10M/100M Base-TX Ethernet
- Video Output: N/A
- EMC:
- CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)
- FCC (FCC 47 CFR part15 B)
- Safety:
- CE LVD (EN 62368-1)
- UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
- Environment: CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU);
- Protection: IP67 (IEC 60529)
General
- Power:
- DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption: Max 2.8W
- Power Interface: Dia (Ø) 5.5mm coaxial power plug
- Dimensions: 129 x 118mm (Ø5.1" x 4.7")
- Weight: 0.48kg (1.06lb)
- Material: Metal
- Working Environment: -22° F to 140° F (-30° C to 60° C), Humidity: ≤ 95% RH (non-condensing)
- Storage Environment: -22° F to 140° F (-30° C to 60° C), Humidity: ≤ 95% RH (non-condensing)
- Surge Protection: 4KV
- Reset Button: Support
- Web Client Language: 13 Languages
- English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
- Warranty: 3 Years
