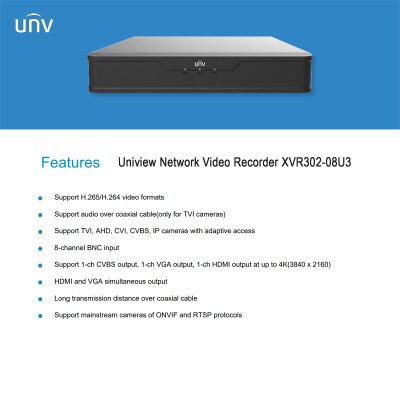

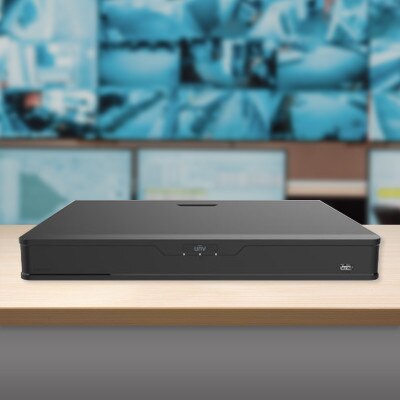

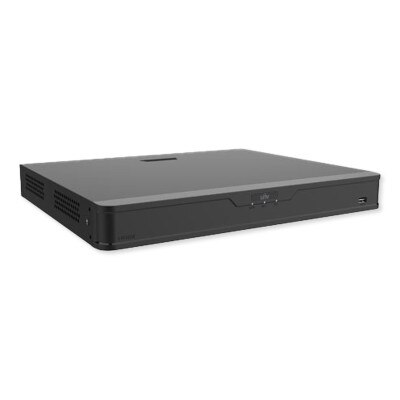

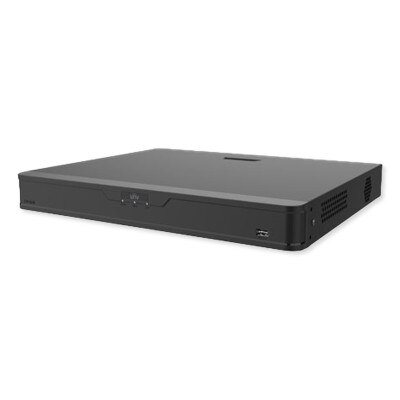

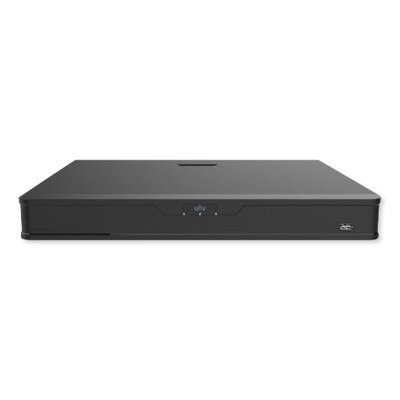

Uniview Digital Video Recorder, 8 Channel
Product Description
The Uniview Digital Video Recorder is an advanced DVR that supports up to 8 active channels capable of connecting various camera types to monitor various indoor and outdoor areas. With high-definition recording capabilities, the Uniview DVR ensures that every detail is captured with clarity, making it ideal for both residential and commercial surveillance. The device features intelligent analytics which enable efficient event detection and automatic alerts to minimize response time during live monitoring or reviewing recorded footage. Its robust design supports remote access and storage management, offering flexibility and convenience for users seeking a comprehensive security solution.
- Supports up to 8 channels for multi-camera connectivity and monitoring
- High-definition recording for clear and detailed video footage
- Intelligent analytics for efficient video search and event detection
- Remote access capabilities for monitoring from anywhere via a smartphone or PC
- Robust storage management for extended recording durations
- Compact and durable design suitable for residential and commercial applications
Why You Would Use This Product:
The Uniview Digital Video Recorder is an essential tool for enhancing the security of your property in both residential and commercial settings. In a residential application, this DVR allows homeowners to connect multiple security cameras, providing comprehensive coverage of their property and ensuring peace of mind. The high-definition recording ensures that crucial details, such as license plates or faces, are captured clearly, which is vital for investigations. For commercial environments, such as offices, retail stores, or warehouses, the DVR supports multi-camera setups, enabling efficient monitoring of large areas and critical zones. Its intelligent analytics and remote access capabilities allow business owners or security personnel to manage and review footage conveniently, even when offsite. Whether protecting your home or business, the Uniview Digital Video Recorder provides reliable performance and advanced features to meet all your surveillance needs.
In The Box:
- Uniview XVR302-08U3 DVR
- Power Adapter
- USB Mouse
- Remote Control
- Quick Start Guide
Notes:
- Hard drives for storage are sold separately; the DVR supports up to 2 hard drives, each up to 8TB.
- Compatible with various analog camera types; refer to the specifications for supported resolutions and frame rates.
- Professional installation is recommended to optimize system performance and ensure proper setup.
Tech Specs
- Part Number: XVR302-08U3
- UPC: 810093320264
- Warranty: 3-Year; Hard drives not covered
Audio / Video Input
- IP Video Input: 8 channel
- Analog Video Input: 8 channel, BNC
- Max IP Video Input: 16 channel
- Supported Analog Camera Types:
- Support AHD Input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps
- Support TVI Input: 8MP@15fps, 3K@20fps, 5MP@20ps, 4MP@30fps, 1080P@30fps, 720P@30fps
- Support CVI Input: 8MP@15fps, 5MP@25ps, 4MP@30fps, 1080P@30fps, 720P@30fps
- Support CVBS Input
- BNC Audio Input: 8 channel audio
- RCA Audio Input: 4 channel
Audio / Video Output
- HDMI Output: HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- VGA Output: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Recording Resolution: 16MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 960p / 720p / D1 / 2CIF / CIF
- BNC Video Output: 1-ch
- RCA Audio Output: 1-ch
- Live View Display: HDMI/VGA: 1/4/6/8/9/16
- Audio over Coaxial Cable(Form): 8-ch, One-way Audio(TVI)
- Two-Way Audio: 1-ch, RCA(Using the audio input and output)
Network
- Incoming Bandwidth: 80 Mbps (Up to 96 Mbps after all analog channel conversion)
- Outgoing Bandwidth: 160 Mbps
- Remote Users: 128
- Protocols: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP
- Browser (Plugin): Windows: IE (IE10/11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above)
Snapshot
- FTP/Schedule/Event Snapshot: Schedule / FTP / Event snapshot:8-ch snapshot, up to 704*576 resolution
Encoding/Decoding
- Recording Resolution: 8MP / 5MP / 4MP / 1080P / 720P / D1
- Recording Frame Rate:
- Main stream: 8MP@8fps, 3K@12fps, 5MP@12fps, 4MP@15fps, 1080P@25fps, 720P@30fps
- Sub Stream: D1@8fps, D1@12fps, D1@15fps, D1@25fps, D1@30fps
- Audio Sample Rate: 8KHz, 16 bit per channel
- Audio Bit Rate: 64Kbps per channel
- Decoding Capability:
- Analog: 8 x 8MP@8, 8 x 3K@12, 8 x 5MP@12, 8 x 4MP@15, 8 x 1080P@25, 8 x 720@30
- IP: 16 x 720P@30, 8 x 1080P@30, 4 x 4MP@30, 2 x 8MP@30
Hard Disk
- SATA: 2 SATA Interfaces
- Capacity: Up to 8TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size)
Smart
- Analog Smart by XVR: SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)
- IP Smart by IPC: Face Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking
- VCA Search: Face Search, Behavior Search
- Smart Functions by XVR: 8-ch(UMD), 4-ch(SIP)
Alarms
- General Alarm: Motion
- Alert Alarm: IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
External Interface
- Network Interface: 1 RJ45 10M / 100M / 1000M self-adaptive Ethernet Interface
- USB Rear Panel: 1 x USB 3.0; Front panel: 1 x USB 2.0
- RS485: 1
- RS232: NA
- Alarm In: 8-ch
- Alarm Out: 4-ch
- Power Supply: DC 12V/3A
PoE
- Interface: 16 RJ-45 10M/100M self-adaptive Ethernet Interface
- Max Power:
- Max 30W for single port
- Max 240W in total
- Supported Standard: IEEE 802.3af/at
General
- Working Environment: 14 to 131° F (10 to 55° C)
- Working Humidity: ≤ 90% RH (non condensing)
- Power Consumption: ≤ 12W
- Dimensions:
- Weight (without HDD): ≤ 2.0 Kg (4.4lb)
- Dimensions: 15.0" x 12.8" x 2.1" (380mm x 326mm x 53mm)
- Certifications: CE; FCC; UL; RoHS; WEEE
- CE: EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
