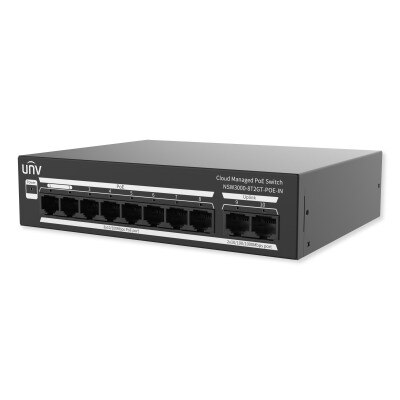

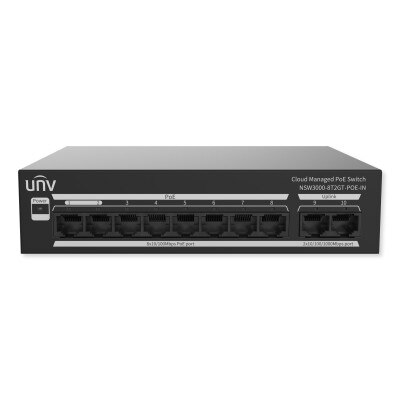

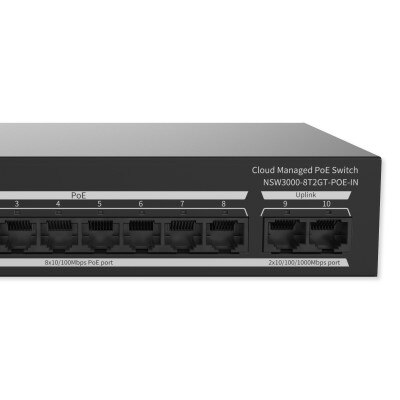

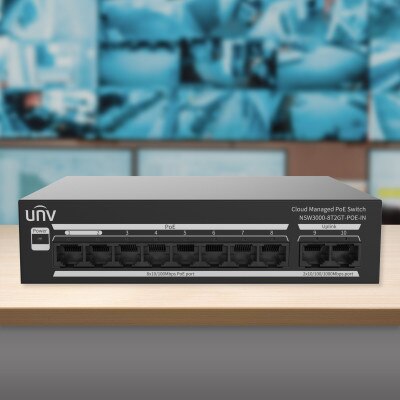

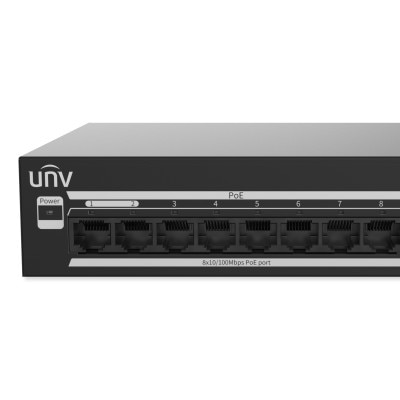

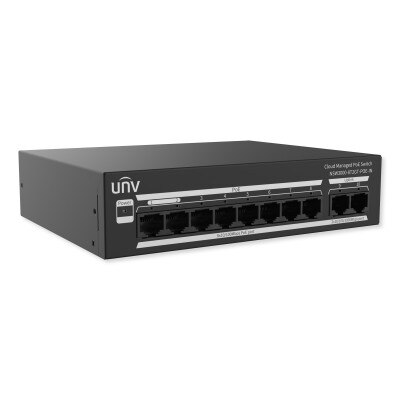

Uniview NSW3000 Series Cloud Managed Ethernet PoE Switch, 8 Port, 120W
Product Description
The Uniview NSW3000 Series Cloud Managed Ethernet PoE Switch, 8 Port, 120W provides high-performance network connectivity with intelligent Power over Ethernet (PoE) capabilities for seamless device integration. This cloud-managed switch allows remote monitoring and configuration, enabling IT professionals and security administrators to manage their networks efficiently from anywhere. With 8 PoE ports delivering a total power budget of 120W, it supports various powered devices such as IP cameras, VoIP phones, and wireless access points, reducing the need for additional power supplies. The switch features advanced security protocols, intelligent traffic management, and automatic device detection, ensuring stable and optimized network performance. Designed for both small and large-scale applications, the Uniview NSW3000 Series switch enhances network reliability while simplifying deployment and maintenance.
- Cloud-managed 8-port PoE switch with 120W total power budget for powering multiple network devices
- Extended transmission range up to 250 meters in extend mode for flexible deployment
- Advanced security features including port isolation and access control for enhanced data protection
- Intelligent traffic management with port priority and QoS support for optimized network performance
- Durable all-metal casing ensuring reliability and longevity
- Ideal for security, business, and smart home applications requiring PoE connectivity
Why You Would Use This Product:
The Uniview NSW3000 Series Cloud Managed Ethernet PoE Switch, 8 Port, 120W, is an essential networking solution for businesses and homeowners needing reliable connectivity and remote network management. In a residential setting, this switch provides a hassle-free way to power and manage security cameras, smart home hubs, and wireless access points while ensuring seamless internet performance. For commercial applications, such as office buildings, retail spaces, or surveillance systems, it delivers efficient power distribution and data control, optimizing network traffic and enhancing security. The cloud management feature enables IT administrators to configure, troubleshoot, and monitor network performance from anywhere, reducing downtime and maintenance costs. Whether for security system integration, VoIP deployment, or smart home automation, this Uniview PoE switch offers a powerful and scalable networking solution.
In The Box:
- Managed Ethernet PoE Switch, 8 Port
- Power Cord
- Quick Install Guide
Tech Specs
- Part Number: NSW3000-8T2GT-POE-IN
- UPC: N/A
- Service Port:
- 8 x 10/100Mbps POE port (RJ45)
- 2 x Gigabit port (RJ45)
- Switching Capacity: 5.6Gbps
- Packet Forwarding Rate: 4.17Mpps
- Packet Buffer: 2Mbit
- MAC: 4K
- Power Supply: AC 100V to 240V, 50/60Hz
- Maximum Total Power: 130W
- Maximum PoE Power:
- Maximum Total Power: 120W
- Maximum PoE Power for Single Port: 30W
- Mode A, 1/2+, 3/6-
- Mode B, 4/5+, 7/8-
- PoE Standard: IEEE802.3af/at
- Priority Ports: 1~2
- Priority QoS: Forwards the packets from the first eight priority ports in the event of data congestion
- Cooling Fans: 0
- Operating Temperature: 32° to 104°F (0° to 40°C)
- Storage Temperature: -40° to 158°F (-40°C to 70°C)
- Operating Humidity: 10% to 90% RH, noncondensing
- Storage Humidity: 5% to 90% RH, noncondensing
- Indicator:
- Power:
- Power On (Green): Normal power input
- Power On (Yellow): The total PoE power is higher than 85% of the total power of the device
- Off: No AC input
- PoE:
- No PoE Indicator; LINK/ACT Off: No link
- LINK/ACT Steady on: Linked
- LINK/ACT Flashing: Transmitting data
- Ethernet:
- Supports full duplex, half duplex, and auto-negotiation working modes
- Supports enabling/disabling ports
- Supports port auto-negotiation rate
- Supports port priority flow control
- Supports port flow statistics
- Supports a link aggregation group (consist of two uplink ports)
- System:
- Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc.
- Allows to edit and manage the IP address and device name
- Supports single-user management, user authentication, and password modification
- Supports manual time configuration and NTP
- Allows to view other switches information on the same network, up to 32 switches
- Allows to view the connected video devices information, up to 64 devices
- VLAN: Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094
- MAC:
- Support (up to 4K)
- Supports clearing the dynamic MAC address
- Port loopback detection: Support
- QoS:
- Supports port rate limitation
- Supports broadcast storm control
- PoE:
- Allows to view PoE status and power
- Allows to enable/disable PoE power supply
- Security:
- Supports port isolation (only for the downlink ports)
- Supports locking login IP address, up to 64 addresses can be locked
- Maintenance:
- Supports N:1 port mirroring
- Supports unified software configuration, management, and search
- Supports discovering the connected video devices and generating a network topology on the software
- Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software
- System:
- Allows to view the device name, device model, serial number, current version, IP address
- MAC address, DNS, operation time, etc.
- Allows you to edit and manage the IP address and device name
- Supports single-user management, user authentication, and password modification
- Supports manual time configuration and NTP
- Allows to view other switches information on the same network, up to 32 switches
- Allows to view the connected video devices information, up to 64 devices
- Standards: IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
- Weight: 1.47 lbs (0.67kg)
- Dimensions (WxDxH): 6.65 x 5.19 x 1.57 inches (169mm x 132mm x 40mm)
