Winland Temp Alert Sensor with Dual High/Low Outputs

$90.28
SKU: WLMTA2

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

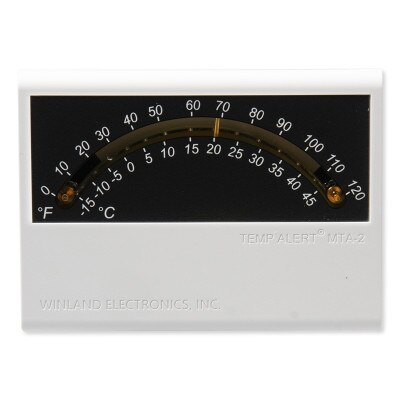

The Temp Alert MTA-2 is a reliable and economical temperature-monitoring device that can be used in residential or commercial applications. Integrate into a security panel, set the desired temperature parameters, and have peace of mind that you will be notified of an incident where corrective action is needed. Alarm contacts may not function outside of the alarm use range. Non-condensing environments only. Do NOT put the console in the freezer/cooler. Use an EnviroAlert® or EnviroAlert Professional® with a wired sensor.

  • Connects to any hard wire or wireless alarm system
  • Separate output for high and low alarm signals
  • Sleek, low-profile styling
  • Normally open (N.O.)
  • No power required to operate
  • Do NOT put the console in the freezer/cooler. Instead, use an EnviroAlert or EnviroAlert Professional with a wired sensor.

In The Box:

  • Temp Alert Sensor
  • 2 x Mounting Screws
  • 2 x Anchors
  • Guide

Note: Do NOT put the sensor in the freezer/cooler – instead use an EnviroAlert or EnviroAlert Professional with a wired sensor for these conditions (all sold separately). Only use in non-condensing environments.

Tech Specs

  • Part Number: MTA-2
  • UPC: 082075011518
  • Case Material: ABS
  • Operating Temperature:
    • Alarm Use: 20 to 110°F (6.7 to 43.3°C)
    • Display use: 0 to 120°F (-17.8 to 48.9°C)
  • Minimum Temp Span: 10° – Recommended distance between high and low set points
  • Temp Accuracy: ±3°F (±1.7°C)
  • Temp Response Time: TC = 14 minutes
  • Outputs: Gold plated normally open dry contacts (Not for high voltage use)
  • Contact Output Rating: 12 VDC @ 50mA
  • Mounting: Surface mount (key slot)
  • Dimensions: 4.5 x 3.25 x 1 inches (11.4 x 8.3 x 2.5 cm)
  • Warranty: 3 Years

Product Docs
