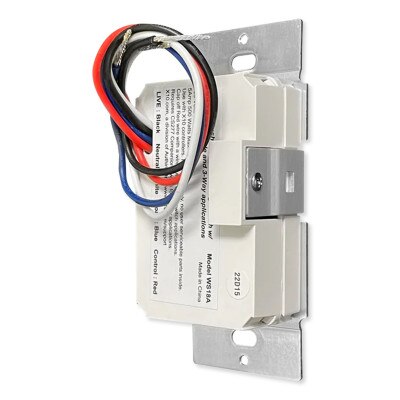

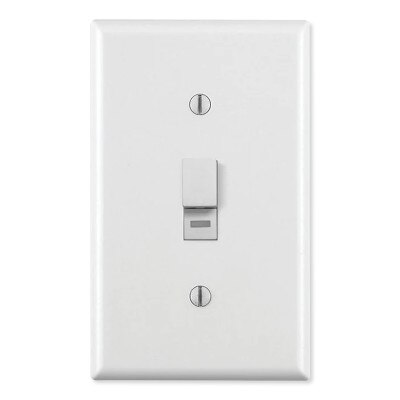

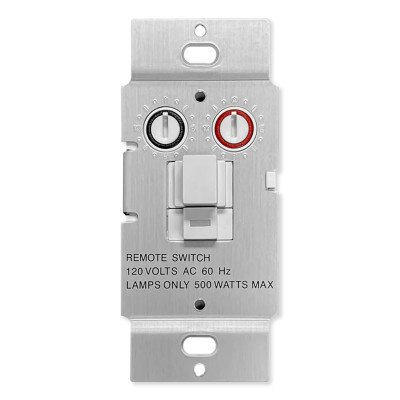

X10 Push Button Dimmable Wall Switch Module
Product Description
The X10 Push Button Dimmable Wall Switch Module can control and Dim/Brighten alternative lighting (like LED, Halogen, Incandescent, etc). This dimmer switch has a LED indicator light that will faintly glow in the dark to help you locate the switch. This switch may be used in single pole applications, simply cap off the red traveler wire. Lamps rated below 6W may flicker or operate erratically with this switch. This switch does require a neutral wire for inductive dimming.
The WS18A is designed to control lighting fixtures up to 500W. The switch can replace a single switch, however, it can also be in 3-way installations with an X10 Companion Switch (CS277), sold separately.
In The Box:
- X10 Push Button Dimmer
- Installation Hardware
NOTE: Wallplate not included. Lights under 6W may flicker or operate erratically with this switch.
Tech Specs
- Part Number: WS18A
- UPC: 806810873854
- X10 Power Rating: 120 VAC, 500W, 5A
- Color: White
