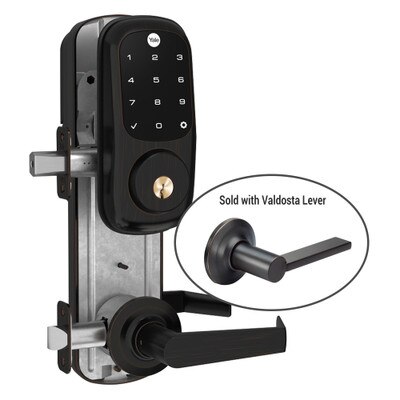

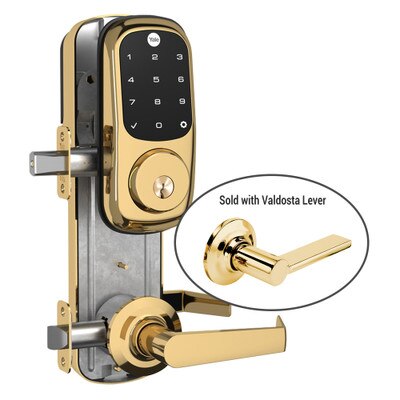

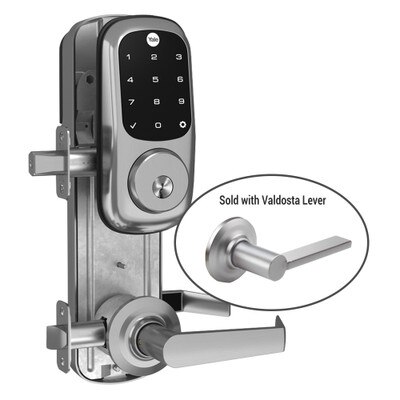

Yale Z-Wave Assure Interconnected Lockset with Touchscreen Deadbolt, Valdosta Lever, Left Handed
Product Description
Assure Lock Touchscreen Interconnected Deadbolt and Valdosta Lever with Z-Wave. Yale Real Living Assure Lock Interconnect combines electronic deadbolts with the convenience of a passage lever for panic proof egress. From the inside, both the latch and deadbolt are retracted simultaneously in a single motion for a quick and easy exit.
- Panic-proof egress. From the inside, both the latchbolt and deadbolt are retracted simultaneously in a single motion for a quick and easy exit.
- Interconnected electronic locksets combine security and convenience with Assure Lock electronic deadbolts and a passage lever. Forget the hassle of carrying keys, unlock your door with a pin code.
- Integrates into your Z-Wave home automation or security system.
- Create up to 250 unique pin codes to share with family and friends (25 with no controller).
- Monitor, lock and unlock from anywhere (*Varies depending on controller).
- Receive interference alarms for tamper and wrong code attempts.
- Key option for peace of mind – comes with 2 keys.
- Weather resistant, durable buttons.
- Keypad has backlit numbers that won't wear off.
- Optional auto re-lock, lockout and tamper alarms.
- Installs in minutes with just a screwdriver. DIY installation or professionally installed.
- All mechanical locksets are 5-1/2" center to center dimension.
- ANSI/BHMA A156.12 Grade 2 Certified
In The Box:
- Touchscreen Lockset, Left Handed
- Z-Wave Network Module
- 4 x AA Batteries
- 2 x Keys
- Mounting Hardware
- Manual
NOTE: Network integration requires a Z-Wave controller (sold separately).
Tech Specs
- Part Number:
- Bright Brass: YRC226-ZW2-VL-5-605-LH
- Oil-Rubbed Bronze: YRC226-ZW2-VL-5-0BP-LH
- Satin Nickel: YRC226-ZW2-VL-5-619-LH
- Lever Style: Valdosta (VL)
- Wireless Protocol: Z-Wave (908.4 MHz) U.S. – includes plug-in Network Module
- Max. User Codes: Standalone: 25 user codes; With Network Module: 250 user codes; 4-8 digits each
- Keypad Type: Touchscreen
- Grade: Grade 2: A156.12 ANSI/BHMA
- Handing: Reversible (Lock is set at LH by default (hinges right); can be reversed in the field for RH by a professional)
- Batteries: 4 AA Alkaline Batteries (Included)
- Face Bore: 2-1/8" (54mm)
- Edge Bore: 1" (25mm)
- Center to Center: 5-1/2"
- Backset: 2-3/8" or 2-3/4"
- Latch: Adjustable
- Latch Front: RC (Round Corner)
- Door Thickness: 1-3/8" (35mm) to 1-3/4" (44mm)
- Strike: 2-1/4" (57mm) Full Lip Lockset and 1" (25mm) W x 2-1/4" (57mm) H Deadbolt; Radius Corner standard, other strikes available to order.
- Strike Front: RC (Round Corner)
- Thumbturn: Yes
- Cylinder: 5-Pin Cylinder
- Keyway 1: KW-1, 5-Pin
- Number of Keys: 2
- Weight: 10 pounds
- Lock Dimensions:
- Exterior: 10-5/8 x 2-1/2 x 2-5/8 inches
- Interior: 12-1/8 x 2-13/16 x 2-5/8 inches
- Approvals: FCC/IC; ANSI/BHMA Grade 2 – BHMA Certified; ANSI A117.1 Accessibility Code; UL/cUL listed for 90 minute fire doors
- Warranty: Lifetime Limited Warranty: 1-Year for Electronics and Finish; 3-Years for Mechanical
