ABB-Welcome Video Distributor

As a video signal branching device in the internal bus, video distributors should be used when star connection is needed for the apartments in the building part and for the gateways in the common part. For the audio system, the video distributor is not needed in the building part and the common part.

Each video distributor can connect up to 4 apartments or 4 lines in the building part and 4 gateways in the common part. The cascaded connection is also possible. The impact of the distance can be reviewed from the distance calculation.

When video distributor is used in the common part, the total distance of all the lines branched by the video distributor under one system controller should be less than 800 meters. Auxiliary power supply can be used to split the whole distance into several sections, which can ensure each section meet the 800 meters distance limit with one system controller. The distance constraint from different cables should also be considered.

• This compact device supports 4-way outputs connected to different apartments or different high-rise buildings
• Flush-mounts into box or surface mounts through the hole in the middle, or DIN rail mounts
• Application: system node to connect between Gateway and Indoor Station, used to expand numbers of Indoor Stations
• System communication: 2 Channels
• Support max to 4 Indoor Stations connection:
• 4 Indoor Stations for 4 apartments
• 2 Indoor Stations for one apartment, 2 for another
• 4 Indoor Stations for one apartment

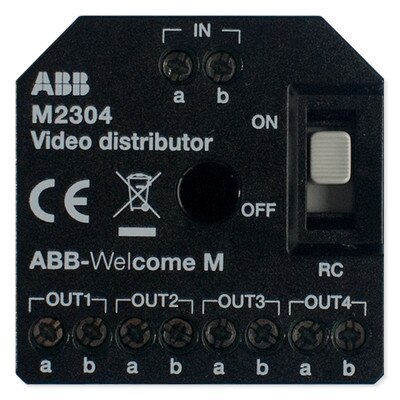

The M2304 video distributor is an integral part of the ABB Welcome door communication system and operates exclusively with components from this system. Device M2304 can be mounted easily inside flush-mounted box, or surface mounted on the wall by one screw.

NOTE: Connects to ABB System Controller or Gateway (not included).
