ABB-Welcome IP Big Display Module, 5"
Product Description

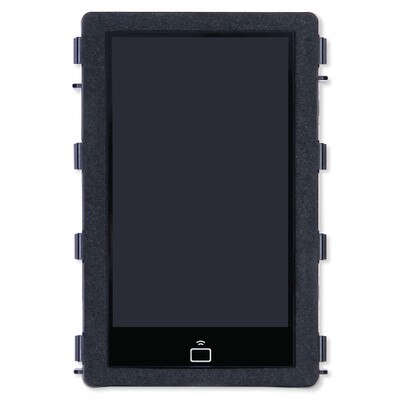

The ABB-Welcome IP Big Display Module, 5", serves as an intuitive touchscreen for the daily operation of your ABB-Welcome IP door station. It ensures that customized messages, codes, and legible numbers can always be read, plus, it incorporates a built-in card reader to allow visitors to use authorized proximity cards (IC card or DESFire) to open the door. Installation is easy, just snap it in place with other ABB-Welcome IP modules.
In The Box:
- ABB-Welcome IP Big Display Module, 5"
- Manual
NOTES: Only compatible with ABB-Welcome IP outdoor stations.
Tech Specs
- Part Number: H851381DP
- Rating Voltage: 24 V DC
- Operating Voltage Range: 20-27 V DC
- Rating Current:
- 27 V DC, 120 mA
- 24 V DC, 130 mA
- Operating Temperature: -4°F to 131°F (-20° C to +55° C)
- Display Type: LCD
- Display Size: 2.55 x 4.25 inches (64.8 x 108 mm)
- Ambient Brightness: <50000 Lux
- Dimensions: 3.81 x 2.83 x 0.91 inches (97 x 72 x 23 mm)
