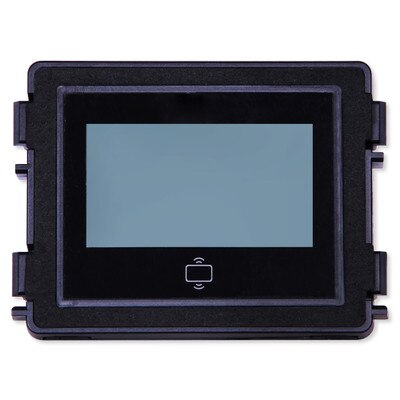

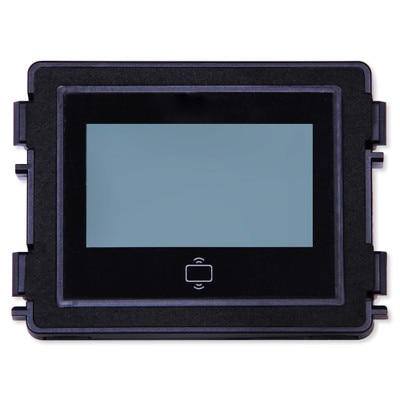

ABB-Welcome IP Display Module
Product Description
The ABB-Welcome IP Display Module ensures that customized messages, codes, and legible numbers can always be read. It incorporates a built-in card reader to allow visitors to use authorized proximity cards (IC card or DESFire), and up to 5,000 pcs cards can be registered. It can also trigger a third-party Wiegand access controller. Installation is easy, just snap it in place with other ABB-Welcome IP modules.
In The Box:
- ABB-Welcome IP Display Module
- Manual
NOTES: Only compatible with ABB-Welcome IP outdoor stations.
Tech Specs
- Part Number:
- 51381CR (ID Card)
- 51382CR (IC Card)
- Rating Voltage: 24 V DC
- Operating Voltage Range: 20-27 V DC
- Rating Current:
- 27 V DC, 145 mA
- 24 V DC, 160 mA
- Operating Temperature: -40°F to 131°F ( -40 °C to 55 °C)
- Dimensions: 3.81 x 2.83 x 0.91 inches (97 x 72 x 23 mm)
