ABB-Welcome IP Bar Pushbutton Module
Product Description
The ABB-Welcome IP Bar Pushbutton Module initiates a call with ABB-Welcome IP indoor stations. It has backlit nameplates and a rocker-button design, allowing you to use the left and right side of the button(s) to initiate calls to different indoor stations. Installation is easy, just snap it in place with other ABB-Welcome IP modules. Available options include: 3-Bar Button and 4-Bar Button.
In The Box:
- ABB-Welcome IP Bar Pushbutton Module
- Manual
NOTES: Only compatible with ABB-Welcome IP outdoor stations.
Tech Specs
- Part Number:
- 51381SP3 (3-Bar Button)

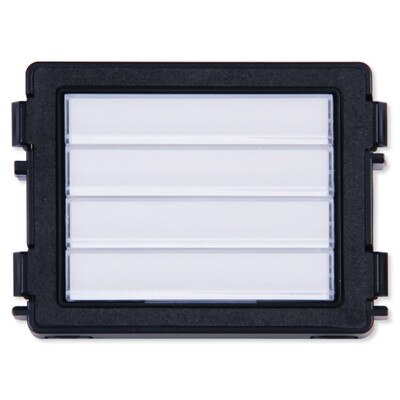

- 51381SP4 (4-Bar Button)
- Rating Voltage: 24 V DC
- Operating Voltage Range: 20-27 V DC
- Rating Current:
- 27 V DC, 8 mA
- 24 V DC, 8 mA
- Operating Temperature: -40°F to 131°F ( -40 °C to 55 °C)
- Dimensions: 3.81 x 2.83 x 0.98 inches (97 x 72 x 25 mm)
