Autoslide AutoSwing Automatic Door Operator

The Autoslide AutoSwing Automatic Door Operator adds automatic and remote controlled open and close functionality to hinge or pivot doors. The AutoSwing installs above or onto a door to push or pull a door outward or inwards. When activated, the AutoSwing will open the door at one of two opening speeds and close after a set time and can emit audio alerts to warn anyone nearby. Built-in safety features include fire alarm integration, magnetic lock or smart deadbolt compatibility, and an auto-reverse function that protects people, pets, objects, and the AutoSwing itself when the door bumps into something during operation. A built-in backup battery provides up to 5 days of power when standard power is unavailable; the battery charges when not in use.

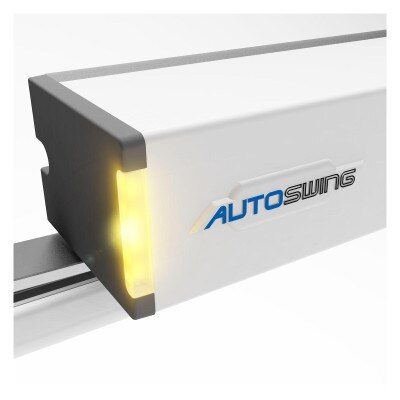

Like the Autoslide, the AutoSwing has 4 operating modes indicated by color changing end cap LEDs which determine what activates the AutoSwing operator. Auto Mode is the standard mode that enables connected devices to activate the AutoSwing, while also allowing manual operation. Lock Mode prevents the AutoSwing from operating and keeps the door shut. Hold Open Mode keeps the door locked in an open position. Pet Mode enables connected Pet RFID tags and readers to activate the AutoSwing.

Two wireless push buttons are included with the AutoSwing, but other Autoslide control devices including remote controls, RFID readers, sensors, and wireless keypads can also provide local and hands free operation. The AutoSwing can be remotely controlled and monitored when users are not at home with the Autoslide app and Autoplus Gateway. Voice control with Amazon Alexa and Apple Siri is enabled through the Autoslide app and Autoplus Gateway. Additionally, the AutoSwing can work with Yale and August Smart locks to add automatic door opening/closing functions for seamless entries and exits. The AutoSwing can be configured to respond to remote commands, such as opening a door when a lock is unlocked, from either the AutoSlide, Yale Access, and August Home apps.

• Opens/closes hinged and pivot doors weighing up to 265 lbs (120kg)
• 4 operating modes indicated via colored LEDs: Auto, Lock, Hold Open, and Pet
• Safety features include auto-reverse upon touching an object or person during operation, fire alarm integration, and access control with smart locks
• Works with Autoslide devices including sensors, remote control buttons, wireless keypads, & RFID proximity tags & readers
• Compatible with magnetic locks, electric door strikes, and smart electric deadbolts
• Built-in lithium backup battery powers usage for up to 5 days
• Bluetooth connectivity and remote monitoring via Autoslide app and Autoplus Gateway
• Voice Control Compatible with Amazon Alexa and Apple Siri via Autoplus Gateway
• Built-in Speaker for voice and audio alerts

Why You Would Use This Product:

The AutoSwing is a perfect fit for homes with occupants with accessibility issues, pets, or high activity. Adding a touch and go or motion activated door opening system alleviates hassles when users are carrying objects or have difficulty moving heavy doors or want to allow pets to freely move room to room or inside and outside. With the purchase of an AutoSlide control accessory such as an RFID card reader, wireless keypad, or even a third party smart lock, users can control who has access to their home. Plus, if a user has a Yale or August Wi-Fi compatible smart lock, the AutoSwing can be programmed to immediately open/close a door when a lock is accessed.

In The Box:

• Motorized Operator
• AutoPlus Gateway
• Clip-On Safety Cover
• Arm Bar
• 2 x Wall Mount Pushbuttons
• Installation Hardware

NOTE: Professional installation recommended. For indoor installation only.
