KBSound Audio Control Unit, EU
Product Description
The KBSound Audio Control Unit is a standalone home audio system that sends audio signals from one source to connected speakers or audio receivers and controls the volume of the connected audio source. When connected to a Bluetooth audio receiver or auxiliary amplifier, the Control Unit can send audio to additional or more powerful speakers respectively.
Features:
- Adds local, in-wall On/Off and Volume Up/Down commands to a local audio source
- Connects a single audio source to a distant pair of speakers within a single audio zone
- Compatible with an In Wall Bluetooth Audio Receiver or Auxiliary Amplifier for a larger audio zone
NOTES: Speakers not included. Power supply not included. KBSound In-Wall Bluetooth Audio Receiver and KBSound Aux Amplifier sold separately.
Tech Specs
- Part Number:

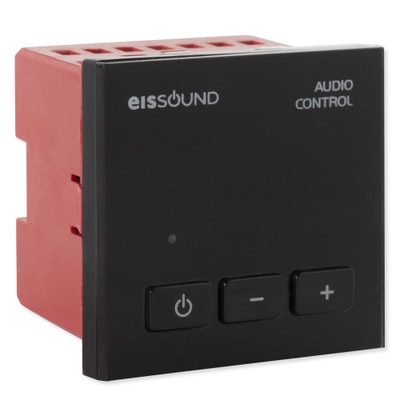

- 09253: Black

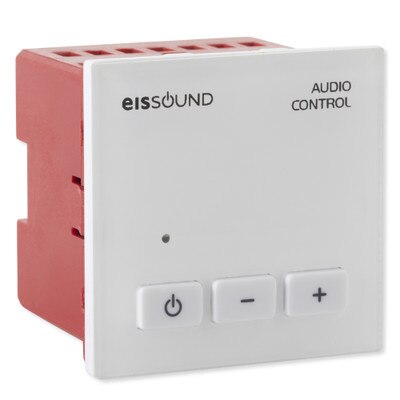

- 09203: White
- UPC:
- 09253: 8436031618433
- 09203: 8436031618426
- Dimensions: 45 H x 45 W x 45.5 D mm
- Voltage: 11 to 15.5 VDC
- Consumption Demand: 31 to 59 mA terminals 2 (VDC), 4 (GND)
- Input Signal:
- 1.82 Vrms terminals 15, 16 mode IN BT
- 0.32 Vrms terminals 15, 16 mode IN OTHER (TV...)
- 33 Kohm terminals 15, 16 input impedance
- Output Signal:
- 1.5W terminals 05, 06, 04 mode OUT 8 ohm
- 1.82W terminals 05, 06, 04 mode OUT AMP
- Amplifier trigger signal:
- 5 VDC terminal 05 (DC component)
- 14 VDC terminal 62
- 1.8 Kohm terminal 62 output impedance
- Passband: 20 to 22000 Hz
- Distortion: 0.1 to 1%
- Warranty: 2-Year
