Leviton Decora In-Wall Occupancy Sensor Switch, Manual-On, 5A, Single-Pole or 3-Way
Product Description

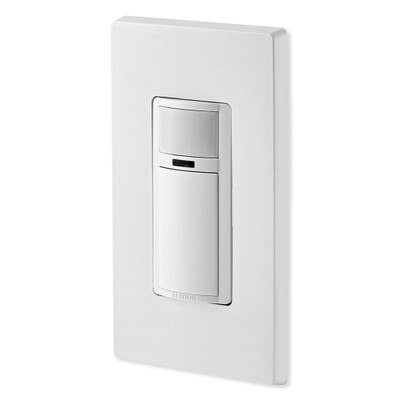

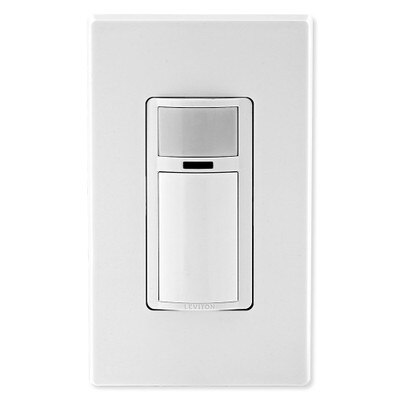

The Leviton Decora Vacancy Motion Sensor In-Wall Switch, Manual On, 5A, Single Pole or 3-Way is a 180° PIR motion sensor which can automatically turn Off connected lights or electrical loads when motion isn't detected after a set time. The switch can also manually turn On/Off connected devices by pressing the pushbutton. It can detect movement up to 30 feet away, or 900 square feet of coverage within a 180° field of view.
The sensor switch can be installed within a single pole application or as part of a 3-way application when wired with a multi-pole switch. It supports 300W LED/CFL, 600W Incandescent/Halogen lights, as well as 400VA Magnetic Low Voltage, 400VA Electronic Low Voltage, ¼ HP Motor, 5A Resistive loads.
Features:
- Manual-ON/Automatic OFF operation controls LED, CFL, Incandescent, Halogen lights and Magnetic Low Voltage, Electronic Low Voltage or Motor Loads
- Provides 180° Field-of-View, 900 sq. ft. of coverage
- Shallow design easily fits in the wallbox and can replace single pole switch
- Can be connected to a neutral wire or ground wire if no Neutral wire is present

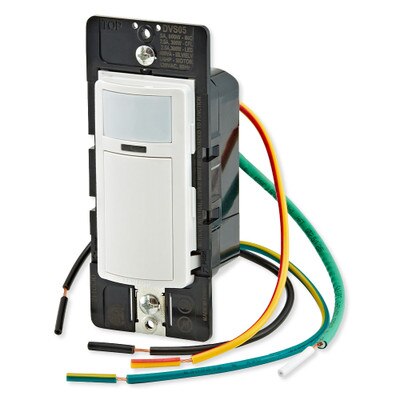

- Interchangeable line and load wires
- Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
- Adjustable Range (sensitivity) to fit various coverage areas
- Convenient push-button provides Manual OFF light switching at any time

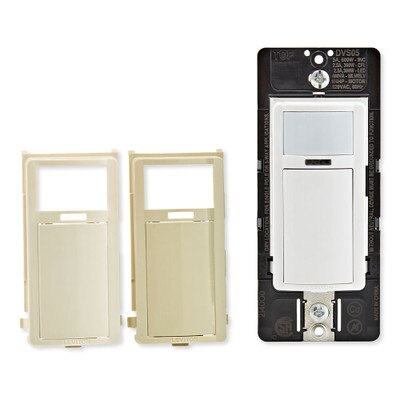

In The Box:
- PIR Motion Sensor Switch, White
- Ivory and Light Almond Faceplates
NOTES: Ground wiring is required; neutral wiring is optional for this installation. Wallplate sold separately. Requires a Phillips screwdriver, Electrical tape, cutters, and pliers for installation.
Tech Specs
- Part Number: DVS05-1LZ
- Auto-ON/Auto-OFF: No
- Color: White, Ivory, Light Almond
- Coverage: 180° field of view, 30 ft x 30 ft, 900 Sq. Ft
- LED Color: Green and Red
- Load Rating: 300W LED/CFL, 600W Incandescent/Halogen, ¼ HP, 400VA ELV, MLV, 5A Resistive
- Mounting Type: Wall Switch
- Switch Type: Relay
- Pole: 3
- Sensor Technology: Passive Infrared
- Sensor Type: Vacancy
- Time Delay: 1, 5, 10, or 20 minutes
- Voltage: 120 VAC
- Wiring: Ground or Neutral Required
- Standards and Certifications: CSA, FCC, Title 20, Title 24
- Warranty: 5-Year Limited
