Qolsys IQ Shock Mini

$27.40
SKU: QSIQSM

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The IQ Shock-S is an encrypted sensor with superior range specifically designed to detect vibrations and impacts on doors, windows, and other entry points, alerting you to potential intrusions or attempted break-ins. When added into a smart security or automation system, it can send alerts if a door, window, or other open/close object is moved, and trigger other devices to automatically activate including alarms, thermostats, lights, and more. The IQ Shock Mini-S is capable of utilizing Qolsys's custom notification and security alerts when paired with a Qolsys IQ NS Control Panel or IQ 4 Hub, including customizable chimes and unique names spoken by the panels text-to-speech functions.

  • Detects vibrations and impacts on doors, windows, entry points, and open/close objects

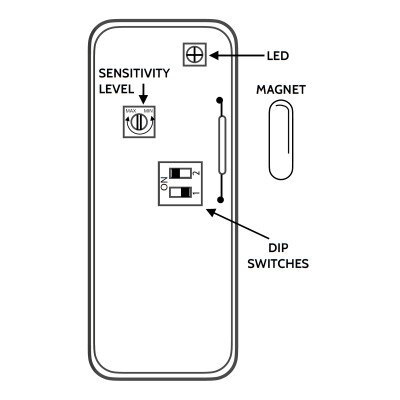

  • Customize sensitivity settings to suit your specific security needs
  • Communicates via 319MHz frequency and integrates into Qolsys home security systems
  • Sleek and compact design blends discreetly into any environment
  • Provides 5 year battery life for reliable, long-term operation
  • Alerts you to tampering attempts or unauthorized access to the sensor
  • Customizable chimes and unique names spoken by Qolsys IQ NS Control Panel or IQ 4 Hub

Why You Would Use This Product:

The Qolsys IQSM IQ Shock Mini offers discrete monitoring of a selected entryway or open close object that you need to constantly watch over. With adjustable sensitivity levels, you can fine-tune the sensor to accurately detect real threats while minimizing false alarms from everyday activities. Whether you're monitoring your home while you're away or ensuring the safety of your business premises after hours, the IQ Shock Mini provides reliable detection and alerting capabilities.

In The Box:

  • Sensor Body
  • Magnet
  • 2 x CR123A Batteries
  • User Manual

NOTE: Requires connection to a compatible control panel/receiver (319.5 MHz wireless frequency), such as a GE/Interlogix Panel (NetworX, Simon, etc.), Qolsys IQ Panel, Leviton 64-Zone Receiver for GE/Interlogix, Elk M1 Wireless Receiver for GE/Interlogix Crystal Transmitters, or other legacy 319.5 MHz system (all sold separately).

Tech Specs

  • Part Number: IQSM
  • UPC: N/A
  • Frequency: 319.5 MHz
  • Code Outputs: Tamper, Tamper Restore, Alarm, Alarm Restore, Low Battery
  • Supervisory Keep-Alive Signal Interval: 70 minutes (approximately)
  • RF Peak Field Strength: typical 36000 uV/m at 3m
  • Door Frame Height: 7 to 8 ft (213 to 244 cm)
  • Door Frame Width: 1 to 4 ft (30.5 to 122 cm)
  • Door Frame Thickness: 1 1/2" to 1 3/4" (3.8 to 4.4 cm)
  • Magnet Gap: 1-inch max
  • Power: 3V Panasonic CR2032 Lithium (x2)
  • Battery Life Expectancy: 5 years for typical use
  • Operating Temperature: 32° to 120° F (0° to 45° C)
  • Operating Humidity: 5 – 93% RH non-condensing
  • Dimensions: 2.5" H x 1" W x .5" D
  • Certifications: UL, ULC, FCC, CE, RoHS
  • Warranty: 1-Year Standard
