STI NoTouch Stainless Steel IR Switch, US Single-Gang, Open

$51.24
SKU: STINTSS102EN

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The STI NoTouch Stainless Steel IR Switch, US Single-Gang, Open, provides easy egress with the wave of a hand. It features NoTouch Infrared technology, a dual color status LED, and a faceplate that's constructed of medical/food grade 304 stainless steel. It will allow users a hands-free way to open a protected door, which means it can help reduce germs from spreading and minimize contamination. The dual-color status LED can be set to turn green to red or red to green, depending on your preference, to show activation of the door being unlocked. The faceplate is also designed to be slightly larger than a normal switch to accommodate retrofit applications.

  • NoTouch infrared wave action
  • Allows user to open a protected door without the touch of a button
  • To open, person waves hand in front of the IR switch
  • Helps reduce the spread of germs
  • Adjustable relay latch 0.5~20 second
  • Faceplate constructed of medical/food grade 304 stainless steel
  • Dual color status LED (green/red)
  • Form "C" dry contact, 0.5A @120VAC, 1A @24VDC
  • 5 in H x 3.4 in W x 1.45 in D

Why You Would Use This Product:

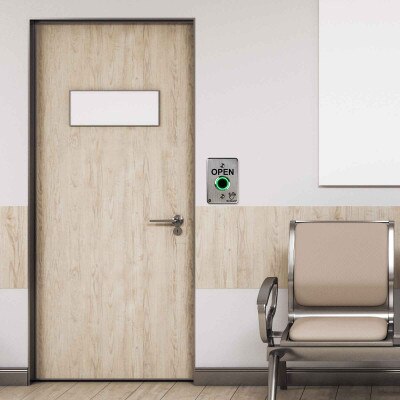

The STI NoTouch Stainless Steel IR Switch provides an ideal solution for allowing users to unlock protected doors without having to use their hands. This helps prevent the spread of germs and contamination, making it a great choice for hospitals, labs, medical clinics, schools, clean rooms, and other buildings where preventing the spread of bacteria, viruses, and other infections to the public is of the utmost importance.

In The Box:

  • EnviroArmour NEMA Polycarbonate Enclosure, Translucent
  • Manual

Tech Specs

  • Part Number: NT-SS102-EN
  • Input Power: 12-24VDC ±10%, 45mA max.
  • Relay Output: Form C (SPDT) dry contact relay
  • Relay Contact Rating: 0.5A @ 120VAC, 1A @ 24VDC
  • Relay Life: 1,000,000 Mechanical Cycles
  • Relay Status LED Indicator (Standby/Active): Red/Green (default)/selectable Green/Red
  • Relay Active Time Delay: Adjustable 0.5 ~ 20 seconds
  • IR Detection Range: Adjustable 4 ~ 15cm (1.5 ~ 6 in)
  • IR Sensor Life: 100,000 hours
  • Operating Temperature: -14° F to 158° F (-10°C & 70°C)
  • Sensor: IP65
  • Sensor Construction: 304 stainless steel/polycarbonate
  • Mounting Plate Construction: 1.5mm thick, 304 stainless steel
  • Rated: UL50 Type 3R, 4, 4X, 6P, 12, IP66
  • Warranty: 1 year guarantee on electro mechanical and electronic components

Product Docs
