Seco-Larm Enforcer Outdoor Wave-To-Open Sensor with Manual Override

$84.39
SKU: SESD9463KSVQ

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

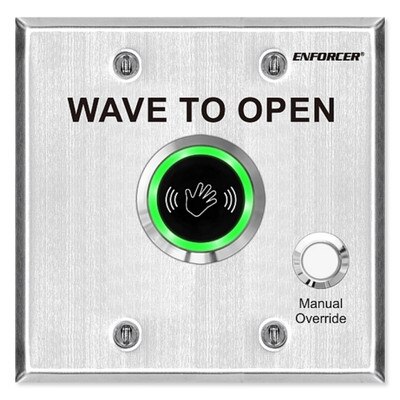

The ENFORCER Outdoor Double-Gang Wave-to-Open Sensor with Manual Override is a full-featured exit plate using IR technology to allow egress from a protected area or activate a device with a simple wave of a hand. Since no touch is required, it is suitable for use in hospitals, clinics, labs, cleanrooms, schools, factories, or offices. The manual override button allows operation during a power failure.

  • Clean and simple no-touch operation reduces the risk of cross-contamination
  • Adjustable sensor range up to 7" (18cm)
  • Weatherproof (IP65) for outdoor use
  • 1.2A Relay, adjustable duration 0.8~30 seconds or toggle
  • Manual override button functions during a power failure
  • LED-illuminated sensor area for easy identification
  • Selectable LED colors (turns from red to green or green to red) on sensor activation
  • Stainless steel plate

In The Box:

  • Wave-to-Open Sensor
  • Manual

Tech Specs

  • Part Number: SD-9463-KSVQ
  • Operating Voltage: 12~24 VAC/VDC
  • Current Draw (max.):
    • Standby: 16mA@12VDC / 25mA@24VDC
    • Triggered: 25mA@12VDC / 32mA@24VDC
  • Relay Type: Form C dry contact, 1.2A@30VDC
  • Response Time: 10ms
  • LEDS: Default, reversible by jumper
    • Standby: Red
    • Triggered: Green
  • Output Time: 0.8 to 30 sec. or toggle, or as long as sensor is triggered
  • Sensing Range: Adjustable between 2-3/8" to 7" (5 to 18 cm)
  • Operating Temperature: -4° to 131° F (-20° to 55° C)
  • Weight: 5.6-oz (160g)
  • Warranty: 1 Year
