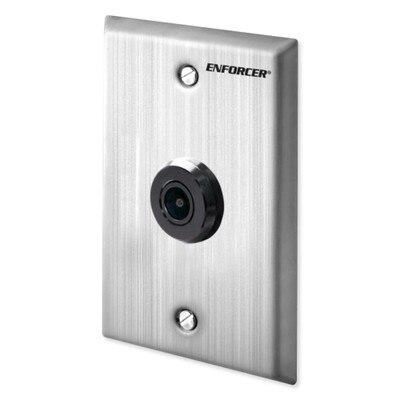

Seco-Larm Enforcer 4-in-1 Wall-Plate Camera, HD TVI, CVI, AHD, Analog
Product Description
The Seco-Larm Enforcer 4-in-1 Wall-Plate Camera (HD TVI, CVI, AHD, Analog) features Sony STARVIS, which provides high quality color saturation when recording at night. It also comes with 2DNR (2D Digital Noise Reduction), D-WDR (Digital Wide Dynamic Range), and a vandal resistant, weatherproof (IP67) design. The Wall-plate Camera can be installed inconspicuously in many different locations: doors, walls, car bumpers, gates, entryways, machinery, and many other places.
- HD TVI, CVI, AHD, Analog
- 2.9mm Lens (155° viewing angle)
- 1/2.8" 2MP Sony STARVIS CMOS
- D-WDR (Digital Wide Dynamic Range)
- 2DNR (2D Digital Noise Reduction)
- Vandal-resistant
- Weatherproof (IP67)
- Fits in a standard single-gang back box (not included)
- Adjustable mounting angle
In The Box:
- Camera
- Single-Gang Plate
- Slimline Plate
- Angled Rubber Ring
- Angled Aluminum Ring
- Aluminum Hex Nut
- OSD Joystick
- Mounting Screws
- Manual
Notes: When installing the camera, ensure that the arrow label behind the lens is at the top. Do not cut the video or power wires or else the warranty will be voided.
Tech Specs
- Part Number: EV-Y5105-N2SQ
- Type: Wall-plate camera
- Formats: TVI (Default) / CVI / AHD / Analog
- Plate Type: 1 Single-gang, 1 slimline
- CMOS: 1/2.8" 2MP Sony STARVIS™ CMOS
- Resolution: 1080p
- 2DNR: Yes
- D-WDR: Yes
- OSD (On-Screen Display): Yes
- External OSD Control: Yes
- Scanning System: 2:1 Interface
- Sync: Internal
- Video Output: 1.0Vp-p Complex video, 75Ω
- Lens: 2.9mm
- Viewing Angle: 155°
- FPS: 30FPS
- F Stop: 2.2
- Minimum Illumination: Color: 0.01Lux, BW: 0.001Lux
- Gamma Correction: 0.45
- S/N Ratio: 50dB
- Gain Control: Auto
- Operating Voltage: 12VDC
- Current Draw: 130mA±15%
- IP Rating: IP67
- Operating Temperature: 14°~122° F (-10°~50° C)
- Dimensions:
- Camera: 1-7/16" x ø1-1/8"(36 x ø28 mm)
- Single-Gang Plate: 2-3/4" x 4-1/2" (70 x 114 mm)
- Slimline Plate: 1-1/2"x4-1/2" (38 x 114 mm)
- Camera Body Weight: 2.8-oz (80g)
- Credentials: RoHS, FCC, CE
- Warranty: 3 Year
