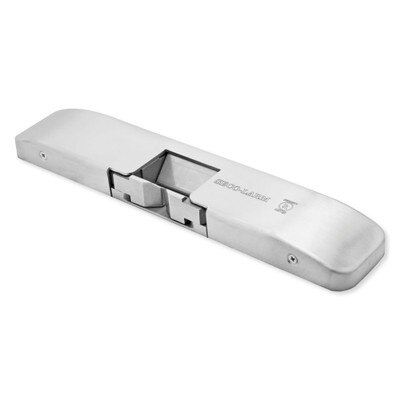

Seco-Larm Surface-Mount Electric Rim Strike, 3/4 Inch
Product Description
The SECO-LARM Surface-Mount Electric Rim Strike is designed for rim-type exit devices with a 3/4" Pullman latch bolt, such as push bar releases. The Electric Rim Strike features selectable fail-safe/fail-secure operation for guaranteed protection and operation in emergency situations. The strike surface mounts onto metal or wood frames, eliminating the need for cutting into the frame during installation.
Features:
- Electric rim door strike accommodates up to 3/4" Pullman latch
- Surface-mounts on metal or wood frames
- Reversible non-handed stainless steel design with horizontal adjustment
- Field-selectable for fail-safe or fail-secure operation
- Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G
- Static strength – 1,500-lb (6673N)
- Tested for 250,000 cycles (UL Tested)
- UL 294 and 1034 Listed
- Tamper-resistant
- Non-polarized connection
- 12/24 VDC Operating voltage
- Low current draw: 540mA@12VDC, 270mA@ 24VDC
- Spacers included: 3x 1/32" (0.9mm)
- For Indoor Use Only
In The Box:
- Strike
- Blind nut kit
- Dead latch ramp adapter
- Hex wrench
- 12VDC cable connector
- 24VDC cable connector
- 2x Blind nuts
- 2x Crimp connectors
- 2x Hex socket head cap screws
- 2x Philips flat head screws
- Spacers – 3x 1/32" (0.9mm)
- Manual
NOTE: The SD-998C series is intended to be used with UL Listed Exit Hardware. The SD-998C series shall not impair the intended operation of an emergency unit. The SD-998C series shall not impair the operation of panic hardware mounted on the door.
Tech Specs
- Part Number: SD-998C-D3Q
- Operating voltage: 12/24 VDC
- Current draw: 540mA@12VDC, 270mA@24VDC
- Maximum latch throw: 3/4" (19mm)
- Static strength: 1,500-lb (6673N)
- Dynamic strength: 70ft-lb (95J)
- Endurance: 250,000 cycles (UL Tested), Level IV
- Destructive attack: Level I
- Line security: Level I
- Standby power: Level I
- Operating temperature: 14° to 120° F (-10° to 49° C)
- Operating humidity: 0 to 85%
- Dimensions: 9" H x 1 3/4" W x 3/4" D (229 H x 45 W x 19 D mm)
- Warranty: 5-Year Limited
