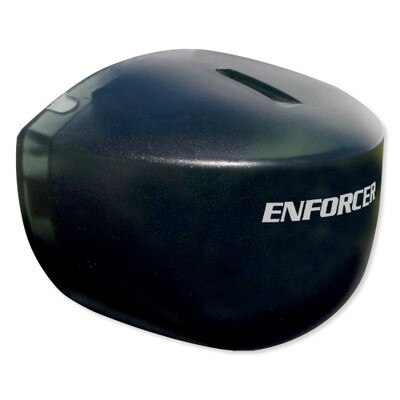

Seco-Larm Enforcer Microwave RTE Motion Sensor
Product Description
The Seco-Larm Enforcer Microwave RTE Motion Sensor is a compact motion sensor with an adjustable output timer that can be connected to an access control keypad, gate opener, and can be used to trigger any device with an egress input.
- 12~24 VDC Operating voltage
- 24.150GHz Microwave Doppler technology
- 10ft (3m) Sensing range, adjustable
- Adjustable relay output time, 1~33 s
- Small size allows for a wide range of applications
- Universally compatible, install the sensor above doors for no-touch ingress/egress
- More consistent detection in large areas and over a wide range of temperatures
- Indoor use only
In The Box:
- Microwave Sensor
- (2) Mounting Screws
- Mounting Template
- 5-Pin Connector Cable
- Manual
Tech Specs
- Part Number: SD-R400-BQ
- Operating Voltage: 12~24 VDC
- Current Draw:
- Standby: 23mA@12VDC / 14mA@24VDC
- Active: 39mA@12VDC / 21mA@24VDC
- Sensor Frequency: 24.150GHz
- Sensor Range: 3'~10' (0.9~3m), adjustable
- Sensor Angle:
- Vertical: 0°~90°
- Horizontal: ±30°
- Detection Angle:
- Front/Back: 20°~30°
- Left/Right: 60°~70°
- Min. Detection Speed: 5cm/s
- Output Relay: 2A@30VDC (0.5A@125VAC) Dry relay,NO/NC/COM
- Relay Output Time: 1~33 s
- Mounting Height: 6'~10' (1.8~3 m)
- Cable Length: 8' (2.5m)
- LED Indicator: Red on relay activation
- Case Material: Black ABS and polycarbonate
- Operating Temperature: -4°F to 131°F (-20°C to 55°C)
- Dimensions: 3-1/8 x 2-3/8 x 2-1/8 inches (80 x 60 x 54 mm)
- Credentials: FCC, RoFC
- Warranty: 1 Year
