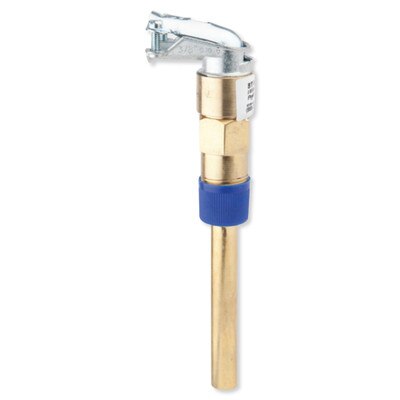

Sensaphone 10K Immersion Temperature Sensor

$58.50
SKU: PHFGD0105

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The 10K Immersion temperature sensor measures the temperature of fluids inside a pipe. It's constructed of brass WEL-B thermowell (which screws into a 0.5" NPT saddle or Thredolet® fitting in a pipe, both sold separately). It fits into a thermowell via a brass 0.125" NPT fitting and has a sensor range from 40° to 221° F ( -40° to 105° C).

In The Box:

  • Immersion Temperature Sensor
  • 8 Feet of 24 AWG Wire

NOTES: Requires a 0.5" NPT saddle or Thredolet® fitting (both sold separately) for installation.

Available for sale only in the U.S.

Tech Specs

  • Part Number: FGD-0105
  • Sensor Temperature Range: -40° to 221° F (-40° to 105° C)
  • Accuracy: ± .36° F | ±.2° C
  • Connection: Hardwired
  • Housing: Brass
  • Dimensions Thermowell: 5.2" (130mm)
  • Sensor Series: 10K Series
  • Compatibility: Sensaphone 1400, 1800, 2800, WEB600, CELL682, Sentinel, Express II, 2000 and SCADA 3000

Product Docs
