Simply45 Pass Through Series Cat5e/6 UTP Starter Kit
Product Description

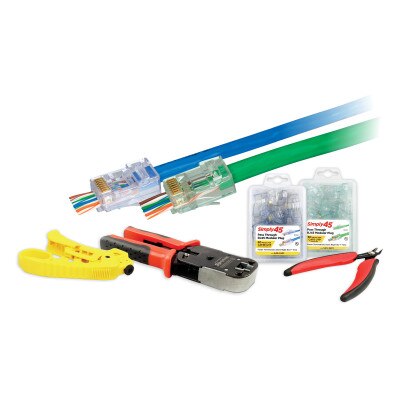

The Pass-Through Series – Cat5/6 Pass-Through UTP Starter Kit includes:
- Simply45 Unshielded Pass-Through RJ45 Modular Plugs for Cat5e: Unshielded Pass-Through RJ45 Modular Plugs for 24AWG Solid (Cat5e UTP), 28-26AWG Stranded (Cat5e/6 Stranded), Wire Conductors 0.95 – 1.05mm/ 0.037: – 0.041", Max Cable OD 6.5mm (0.255"), UL94 V0 Commercial Rated, Blue Tint – 50pcs/Plastic Clamshell.
- Simply45 Unshielded Pass-Through RJ45 Modular Plugs for Cat6: Unshielded Pass-Through RJ45 Modular Plugs for 23AWG Solid (Cat6 UTP), 26-24AWG Stranded (Cat5e/6 UTP Stranded), Straight Insert, Wire Conductors 0.95mm~1.05mm/0.037"~0.041", Max Cable OD 7.0mm (0.276"), UL94 V0 Commercial Rated, Green Tint – 50pcs/plastic clamshell.
- Simply45 Pass-Through RJ45 Crimp Tool: Pass-Through RJ45 Crimp Tool for UTP & Internal Ground Shielded Pass Through RJ45 Mod Plugs, Built-In Stripper/Cutter.
- Simply45 Professional Adjustable LAN Cable Stripper: Professional Adjustable LAN Cable Stripper & Cutter – For Shielded & Unshielded Cat7a/6a/6/5e UTP/STP. Includes Wire Straightener.
- Simply45 Premium Flush Cutter: 5-inch Premium Flush Cutter Tool, Angled Jaw for Precision, Cushioned Grip, Wire Up To 18AWG.
In The Box:
- Simply45 Unshielded Pass-Through RJ45 Modular Plugs for Cat5e
- Simply45 Unshielded Pass-Through RJ45 Modular Plugs for Cat6
- Simply45 Pass-Through RJ45 Crimp Tool
- Simply45 Professional Adjustable LAN Cable Stripper
- Simply45 Premium Flush Cutter
Tech Specs
- Part Number: S45-PTK56U
- UPC: 810093720019

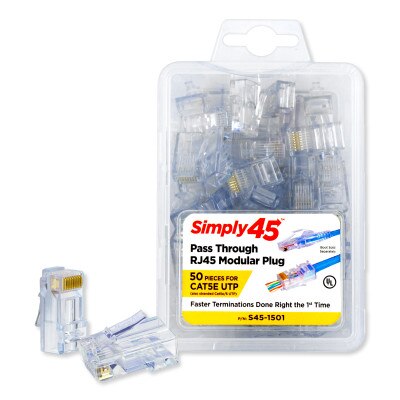

Simply45 Unshielded Pass-Through RJ45 Modular Plugs for Cat5e
- Manufacturer Part #: S45-1501 (50 pack)
- Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
- Wire Cond(s) OD: 24 AWG Solid/ 28-26 AWG Stranded: 0.037 – 0.041 inch (0.95mm – 1.05mm)
- Max LAN Cable OD: 6.5mm (0.255")
- Supports PoE/PoH: Yes
- Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
- Flame Auto Extinguish: UL 94V-0, IEC 60695-11-10
- Contact Material: Phosphor Bronze – .012" thick
- Contact Plating: Min 50 Micro-Inch Pure Gold – 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
- Plug Material: Polycarbonate
- Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
- Conductor Type(s): Solid and Stranded
- Operating Temperature: 104° F to 158° F (-40° C to +70° C)
- Insertion/Extraction Life: 2000 Minimum Cycles
- Contact Resistance: 20 Milli-Ohms max
- Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
- Compliance: UL Listed, RoHS, FCC, NEC, TAA
- Warranty: Lifetime Limited

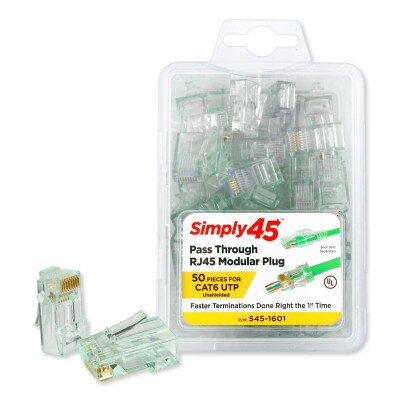

Simply45 Unshielded Pass-Through RJ45 Modular Plugs for Cat6
- Manufacturer Part #: S45-1501 (50 pack)
- Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
- Wire Cond(s) OD: 23 AWG : 0.95mm – 1.05mm (0.037" – 0.041")
- Max LAN Cable OD: 7.0mm (0.276")
- Supports PoE/PoH: Yes
- Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
- Flame Auto Extinguish: UL94 V0, IEC 60695-11-10
- Contact Material: Phosphor Bronze – .012" thick
- Contact Plating: Min 50 Micro-Inch Pure Gold – 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
- Plug Material: Polycarbonate
- Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
- Conductor Type(s): Solid and Stranded
- Operating Temperature: 104° F to 158° F (-40° C to +70° C)
- Insertion/Extraction Life: 2000 Minimum Cycles
- Contact Resistance: 20 Milli-Ohms max
- Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
- Compliance: UL Listed, RoHS, FCC, NEC, TAA
- Warranty: Lifetime Limited

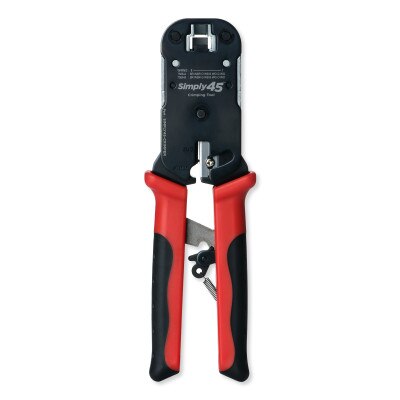

Simply45 Pass-Through RJ45 Crimp Tool
- Manufacturer Part #: S45-C100
- Trimming Blade: Made of diamond polished hardened steel
- Construction: Made in the U.S.A.
- Compliance: TAA, UL listed, RoHS and FCC
- Warranty: Lifetime Limited

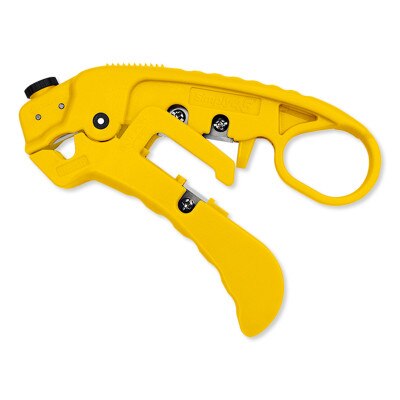

Simply45 Professional Adjustable LAN Cable Stripper
- Manufacturer Part #: S45-S01BL
- Dimensions: 8.7 x 4.7 x 1.3 inches (221 x 120 x 32 mm)
- Weight: 0.214 lb (0.097 kg)
- Construction: Made in the U.S.A.
- Compliance: TAA, UL listed, RoHS and FCC

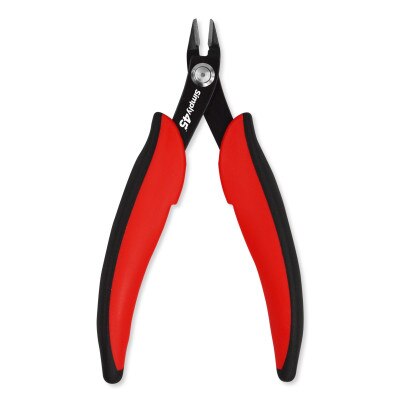

Simply45 Premium Flush Cutter
- Manufacturer Part #: S45-801
- Blade Material: Heat treated high carbon steel
- Copper Wire: Shears up to 18 AWG (1mm)
- Construction: Made in the U.S.A.
- Compliance: TAA
