  • ABB-Welcome Wi-Fi Video Indoor Station, 4.3", White

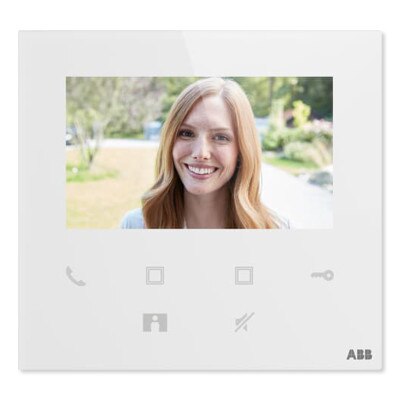

ABB-Welcome Wi-Fi Video Indoor Station, 4.3", White

$282.96
SKU: ABBM22401W

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The ABB-Welcome Wi-Fi Video Indoor Station, 4.3" provides the best level of security for your network and data while protecting your home and your family's well-being. It features a 4.3" inch IPS screen with a glossy frameless glass surface. The new panel has 6 keys to control main video door entry functions: accept calls, door release, mute audio, surveillance, adjust the station's settings, adjust and a fifth programmable button for customizable control.

The Video Indoor Station makes communication accessible across your home and provides several automation and security features. View images from multiple outdoor stations or surveillance cameras connected to a single Indoor Station. Onboard memory stores guest history and audio/video footage from outdoor stations, voicemail and answering machine messages and custom doorbell tones, songs, and alerts. Built-in LEDs help you notice missed calls, device status, and alert notifications.

Place the indoor station anywhere in your home using surface-mount or desktop installation.

Features:

  • Intuitive GUI on 4.3" IPS screen with high color fidelity and wider viewing angles
  • Intuitive button layout with separate "call" & "unlock" button to avoid mis-operation on the small size panel
  • Comfortable living style with 18mm slim thickness
  • Wi-Fi network connection & parameters of panel can be configured through ABB-Welcome APP following wizard design
  • APP pairing process is easy: scan the QR code for the first mobile device and click the "pair" button for additional mobile devices
  • Up to 8 mobile devices can be paired with one panel through the same MyBuildings account login
  • Protection against unauthorized access thanks to data encryption, secured password & images of your personal documents
  • Remote firmware update through ABB-Welcome APP

In The Box:

  • Video Indoor Station

NOTE: For indoor use only. Requires 2-wire connection to an ABB System Controller, sold separately. Also requires use with at least one outdoor station that includes an audio module OR at least one additional indoor station, and at least one camera to provide video. Installation hardware and SD card not included.

Tech Specs

  • Part Number: M22401-W
  • EAN: 6955891817692
  • Display Size: 4.3" IPS
  • Display Resolution: 480 x 272
  • Operating Temperature: 14° to 131°F (-10° to 55°C)
  • Ingress Protection: IP30
  • Wireless Transmission Power: Max. 20 dBm
  • Wireless Transmission Standard: IEEE 802.11 b/g/n, 2.4 GHz
  • Single-Wire Clamps: 2 x 0.28 mm2 – 2 x 0.75 mm2
  • Fine-Wire Clamps: 2 x 0.28 mm2 – 2 x 0.75 mm2
  • Bus Voltage: 20-30V
  • Standby Current: ≤45 mA @ 24 V DC
  • Operating Current: ≤330 mA @ 24 V DC
  • Dimensions: 5.125 x 4.35 x 0.94 inches (131.4 W x 122.3 H x 18 mm)
  • Warranty: 2 Year
