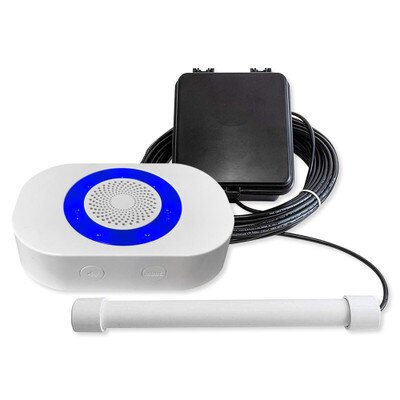

Dakota Alert 4000 Probe Alert Kit and Receiver with Relays

$259.99
SKU: DADCPA4KPLUS

IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Dakota Alert Probe Alert Kit with Receiver with Chime and Relay will notify you when a vehicle pulls up your driveway. It includes a receiver, transmitter, probe and wire. The transmitter operates on four CR123A batteries and has 50 feet of direct burial wire connecting the probe to the exterior case. The probe is buried parallel to the driveway, and will detect vehicles passing by within 10-12 feet (approximately). The direct burial cable can be run to a tree or post nearby, where the transmitter box is located. When a vehicle drives by, the transmitter will send a signal to the DCR-4000 receiver up to 1 mile away.

The DCPA-4000 is perfect for locations where deer or other large animals could cause false signals with a motion detecting system. And because the probe is buried underground, it is the least noticeable of the Dakota Alert wireless systems. The transmitter is weatherproof and designed for exterior locations.

The 4000 Series Receiver with Chime and Relay connects with multiple Dakota Alert 4000 series wireless alarm systems or sensors within a range of 1 mile. It can connect with up to 16 wireless 4000 series transmitters and offers a selection of 12 different tunes to help distinguish between alerts.

The receiver has two form C relay outputs and a 12VDC relay output that activates when a connected sensor is triggered. The relay and voltage outputs can be set to trigger on a delay between 1 second, 5 seconds, 15 seconds, or 5 minutes after a sensor is activated.

In The Box:

  • 4000 Series Receiver with Relays
  • 4000 Series Transmitter
  • Probe
  • Wire
  • 12VDC Transformer
  • (4) CR123A Batteries (U.S. orders only)

NOTE: The transmitter is only compatible with the 4000 series receivers. Signal range of transmitter will vary depending on the environment. CR123A batteries not included on orders outside of the United States.

Tech Specs

  • Part Number: DCPA-4K Plus
  • Number of Sensors: Up to 16 Sensors
  • Outputs:
    • 2 x form C (normally open and normally closed) relays, rated 3A
    • 1 x 12VDC output max 400mA
  • Operating Voltage: 12VDC – Power Supply Included
  • Frequency: 433.92 MHz
  • Wireless Range: up to 1 mile (1.6km)*
  • Product Dimensions: 3.3in (H) x 5in (W) x 1.3in (D)
  • Operating Range: -30°F to 120°F (-34°C to 48°C)
  • Burial Wire Length: 50 Feet
  • Transmitter Signal Range: Up to 1 mile, depending on the environment
  • Transmitter Batteries: (4) CR123A, included in U.S. orders only
  • Warranty: 1 Year
