Dakota Alert 4000 Rubber Hose Alert Kit and Receiver with Relays


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

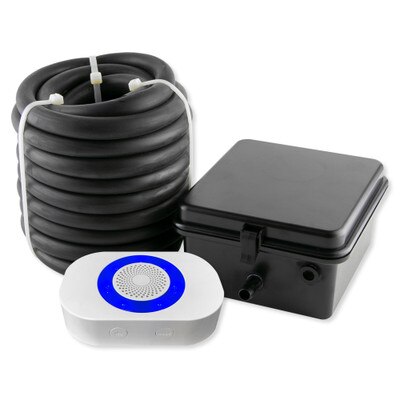

The Dakota Alert Rubber Hose Alert Kit with Receiver with Chime and Relay is designed to notify you when a vehicle pulls up your driveway. It's simple to install and includes a receiver, transmitter, and rubber hose. Just place the rubber hose (25 feet, 3/8-inch diameter) across the driveway after it's connected to the transmitter. When a vehicle drives over the hose, a signal will be sent to the DCR-4000 receiver.

The weatherproof transmitter operates on one 9-volt battery and is meant for exterior locations. Up to 12 zones can be monitored with additional transmitters. The transmitters can be programmed so that each will sound a different tone at the receiver.

The 4000 Series Receiver with Chime and Relay connects with multiple Dakota Alert 4000 series wireless alarm systems or sensors within a range of 1 mile. It can connect with up to 16 wireless 4000 series transmitters and offers a selection of 12 different tunes to help distinguish between alerts.

The receiver has two form C relay outputs and a 12VDC relay output that activates when a connected sensor is triggered. The relay and voltage outputs can be set to trigger on a delay between 1 second, 5 seconds, 15 seconds, or 5 minutes after a sensor is activated.

In The Box:

  • 4000 Series Receiver with Relays
  • 4000 Series Transmitter
  • Rubber Hose

NOTE: Signal range of transmitter will vary depending on the environment.

Tech Specs

  • Part Number: DCRH-4K Plus
  • Number of Sensors: Up to 16 Sensors
  • Outputs:
    • 2 x form C (normally open and normally closed) relays, rated 3A
    • 1 x 12VDC output max 400mA
  • Operating Voltage: 12VDC – Power Supply Included
  • Frequency: 433.92 MHz
  • Wireless Range: up to 1 mile (1.6km)*
  • Receiver Dimensions: 3.3in (H) x 5in (W) x 1.3in (D)
  • Operating Range: -30°F to 120°F (-34°C to 48°C)
  • Rubber Hose: 25 Feet, 3/8-inch diameter
  • Signal Range: Up to 1 mile, depending on the environment
  • Battery: 9 volt
  • Warranty: 1 Year
