Dakota Alert 4000 Series Receiver with Relays


IN STOCK! Ships same business day if ordered before 3pm PT

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

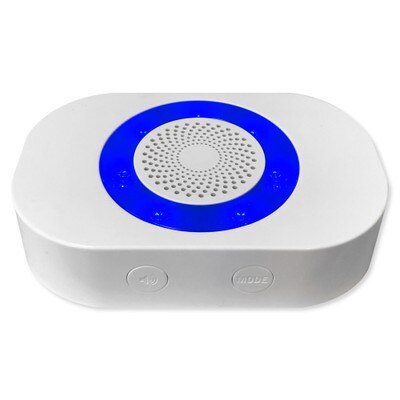

The Dakota Alert 4000 Series Receiver with Chime and Relay connects with multiple Dakota Alert 4000 series wireless alarm systems or sensors within a range of 1 mile. It can connect with up to 16 wireless 4000 series transmitters and offers a selection of 12 different tunes to help distinguish between alerts.

The receiver has two form C relay outputs and a 12VDC relay output that activates when a connected sensor is triggered. The relay and voltage outputs can be set to trigger on a delay between 1 second, 5 seconds, 15 seconds, or 5 minutes after a sensor is activated. This allows the receiver to connect to an alarm or an automation system at the simultaneously. Add an extra receiver(s) to your Dakota Alert 4000 series to enable notifications in different rooms, offices, the garage, shed or barn.

Select from these available tones:

Ding Dong (high), Ding Dong (low), Westminster, Fur Elise, Alarm/Siren, Coo Coo Clock, Bird Chirping, Twinkle Twinkle, William Tell, Canon in D, Morning, Toreador March

In The Box:

  • 4000 Series Receiver with Relays
  • Power Adapter
  • User Guide

NOTE: Wireless range is line of sight without obstacles or interference. This receiver is compatible with only the 4000 series devices and transmitters.

Tech Specs

  • Part Number: RE-4k Plus
  • Number of Sensors: Up to 16 Sensors
  • Outputs:
    • 2 x form C (normally open and normally closed) relays, rated 3A
    • 1 x 12VDC output max 400mA
  • Operating Voltage: 12VDC – Power Supply Included
  • Frequency: 433.92 MHz
  • Wireless Range: up to 1 mile line of sight
  • Product Dimensions: 3.3in (H) x 5in (W) x 1.3in (D)
  • Warranty: 1 Year
