PCS 0-10V Relay Dimmer Wall Switch, 120V


Please Select Option To View Availability

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Product Description

The PCS 0-10V Relay Dimmer Wall Switch, 120V is part of PCS' line of relay dimming products. It uses the standard mechanical relay in wall switches or occupancy sensors to send messages to a simple low-cost receiver module installed in any standard LED fixture with a 0-10V driver. Functioning together, smooth dimming to any level is easily achieved.

  • Full featured dimming
  • Single-tap: top 100% – bottom: Off. Double tap: top 40% – bottom 10%
  • If needed, field adjustable levels in switch to "tune" for the site
  • No new wires means a 2-person job is now a 1-person job
  • Bid the job without investigating wiring complexity
  • No programming or commissioning needed – operates right after install
  • Parts cost equal to the older, less functional method of using a low-voltage switch
  • Switch has occupancy sensor input if needed
  • Switch has 3-way (traveler) control possible with available remote-switches
  • The easiest least-expensive way to meet Title 24 dimming requirement
  • Win retrofit and new install jobs with less effort and better function

In The Box:

  • 0-10V Relay Dimmer Wall Switch
  • Manual

Tech Specs

  • Part Number:
    • WS-120V-I: Ivory

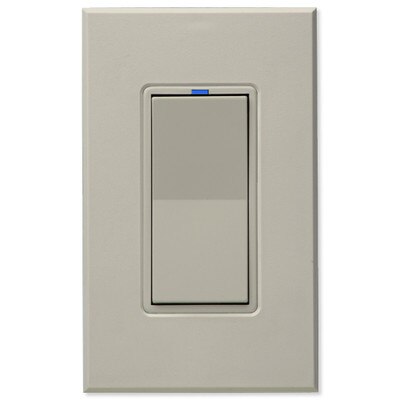

    • WS-120V-LA: Light Almond

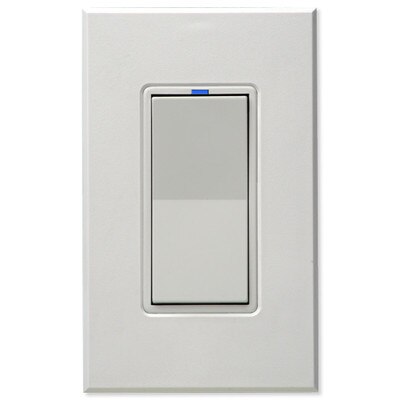

    • WS-120V-W: White
  • Maximum Load: 15A
  • Connections: 14 GA, 105 C insulation
  • LED Indicator: Yes
  • Dimensions: 4.3 (H) X 1.7 (W) X 1.9 (D) inches
  • Weight: 0.3 lbs
  • Mounting: Standard J box
  • Input Power: 120 VAC, 10%
  • Input Frequency: 60 ± 0.3 Hz
  • Operating Temp: -40° to 140°F (-40° to 60°C)
  • Warranty: 5 Years
