  • Seco-Larm ENFORCER Post-Mount Wave-to-Open Sensor with Access Box

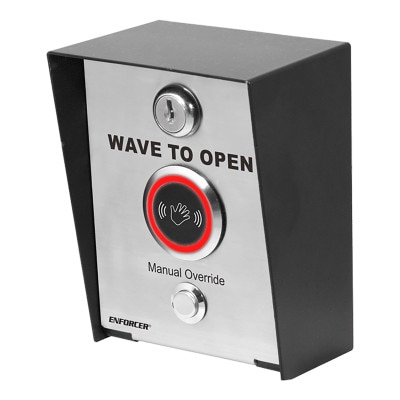

Seco-Larm ENFORCER Post-Mount Wave-to-Open Sensor with Access Box

$100.08
SKU: SESD9963KSGQ

Order now and we'll ship usually within 3-5 business days.

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Product Description

The Seco-Larm Post-Mount Wave-to-Open Sensor with Access Box offers a touch-free, hygienic solution for entry and exit points, making it perfect for both residential and commercial settings such as hospitals, clinics, labs, cleanrooms, schools, factories, or offices. The wave-to-open technology allows users to activate doors or gates with a simple hand motion, reducing contact and preventing the spread of germs. Its durable construction ensures reliable performance in various environments, and the integrated access box adds an extra layer of security. With adjustable sensor range and response time, this versatile sensor can be tailored to meet your specific needs.

  • Touch-free wave-to-open technology with sensor range up to 7 inches
  • 1.2A Form C relay, adjustable output duration 0.5 to 30 seconds or toggle
  • Durable construction with hinged stainless steel plate
  • Designed with manual override button as a backup to the sensor
  • Front panel is IP65 rated as weatherproof for outdoor use
  • Can be mounted on a wall or on a Gooseneck

In The Box:

  • Wave-to-Open Sensor
  • Steel Box
  • Manual

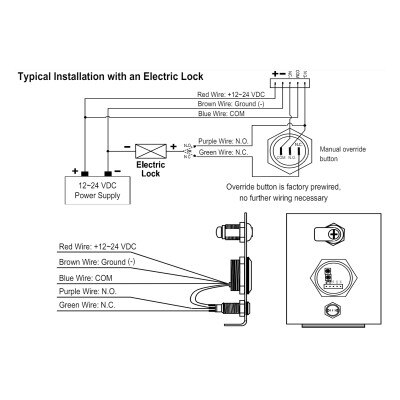

NOTE: Use only low-voltage field wiring and do not exceed 98.5ft (30m).

Tech Specs

  • Part Number: SD-9963-KSGQ
  • UPC: 676544016298
  • Operating Voltage: 12 to 24 VDC
  • Current Draw (max.):
    • Standby Red: 18mA@12VDC / 23mA@24VDC
    • Triggered Green: 23mA@12VDC / 29mA@24VDC
    • Standby Green: 14mA@12VDC / 18mA@24VDC
    • Triggered Red: 28mA@12VDC / 35mA@24VDC
  • Relay Type: Form C dry contact (SPDT), 1.2A@24VDC
  • Response Time: 10ms
  • LEDs (color function reversible):
    • Standby: Red
    • Triggered: Green
  • Output Time: 0.5~30 s or toggle
  • Range: 2"~7" (5~18 cm)
  • IP Rating: Weatherproof IP65 (Front Panel Only)
  • Operating Temperature: -4°~131° F (-20°~55° C)
  • Weight: 1-lb 9-oz (710g)

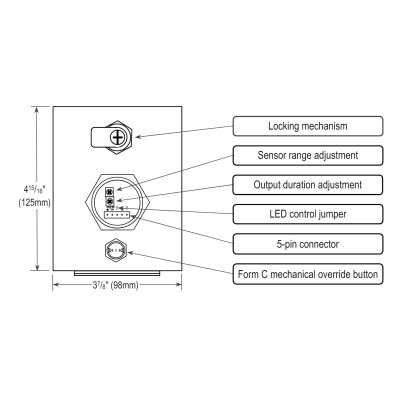

  • Size: 4"x5-1/2"x 3" (102x134x77mm)
  • Warranty: 1 Year

Product Docs
